Linn - Kendo MC - Phono Cartridge
Linn - Kendo MC - Phono Cartridge
Linn - Kendo MC - Phono Cartridge
Linn - Kendo MC - Phono Cartridge
Linn - Kendo MC - Phono Cartridge
Sold Out

    Linn - Kendo MC - Phono Cartridge

    $5,500.00
    Kendo is a modern martial art form; translated from the Japanese it means “way of the sword”. At Linn however, the word has unique connotations. This sword is forged of boron, with a super-fine-line diamond...
    DESCRIPTION

    Kendo is a modern martial art form; translated from the Japanese it means “way of the sword”. At Linn however, the word has unique connotations. This sword is forged of boron, with a super-fine-line diamond tip. The armour is nickel-coated, 7075-grade aluminium. Kendo is the eager apprentice to its master, Linn Ekstatik flagship cartridge, sharing the same values and picking up many of its traits along the way.

    Kendo is the outcome of Linn's engineers’ efforts to capitalise on the elements of Ekstatik which work so well; using their tried-and-true, trickle-down development methodology to produce a more affordable, high-performance cartridge which retains the same core design principles and acoustic fingerprint.

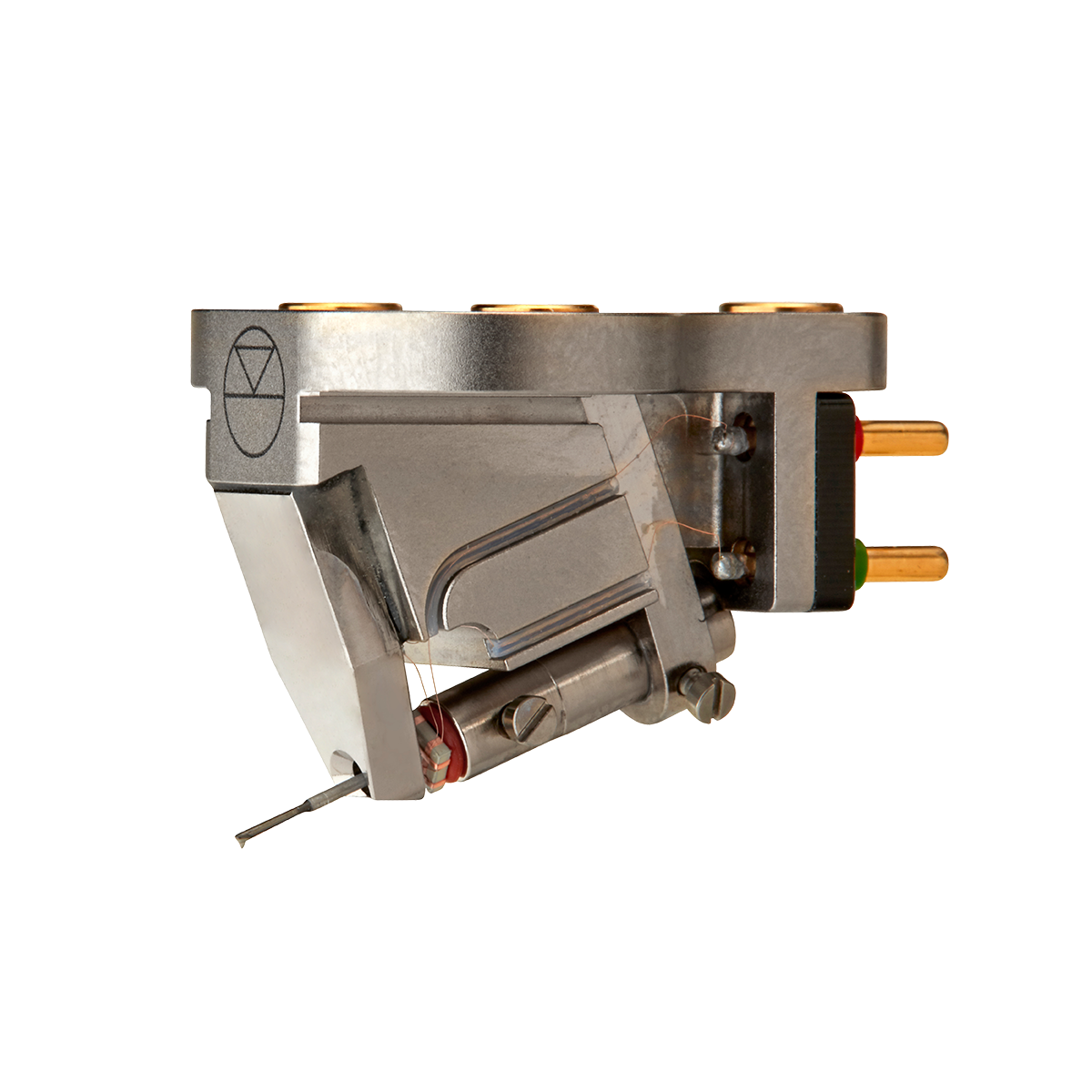

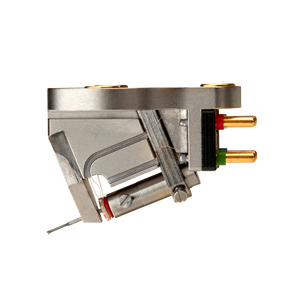

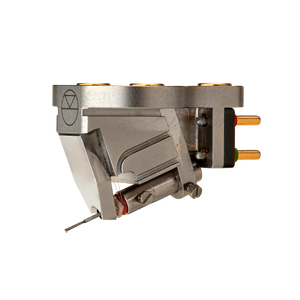

    Kendo possesses a rigid, nickel-coated 7075-grade aluminium body. This specific grade of aluminium matches that of the Arko tonearm, for which Kendo was designed to be the perfect partner. This facilitates superb material synergy throughout the tonearm system, and effectively banishes unwanted resonances away from the delicate generator, along the arm, and out through the sub-chassis.

    Key features

    • Moving coil (MC)
    • Rigid, nickel-coated, 7075-grade aluminium body
    • Low-mass and stiff boron cantilever
    • Super-fine-line stylus
    • Aluminium-bronze threaded inserts
    • Perfectly paired with Arko tonearm

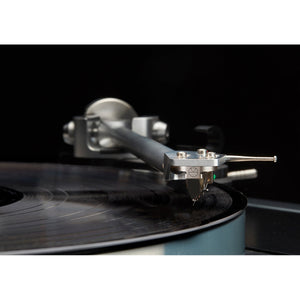

    (NB. Pictured Linn Arko Tonearm is not included)



    Technical Specifications

    High-performance moving coil cartridge

    Stylus Type Super Fine Line
    Cantilever Boron
    Coil Wire Copper 4N
    Pin Connection Type 1.2mm gold pin
    Mounting Points 3
    Output Voltage 0.45mV @3.54cm/s
    Channel Balance at 1 kHz < 1dB
    Channel Separation at 1kHz > 28dB
    Load Resistance 100Ω
    Load Capacitance` 1nF
    Tracking Force 2.0g
    Cartridge Mass 7.6 g
