DELA - S1 - Network Switch

For over 10 years, DELA (formerly MELCO) has been shaping the audio network switch market.

The S1 is DELA’s flagship network switch meticulously crafted for high-end audio performance, representing the pinnacle of DELA innovation.

The S1 is equipped with a fully designed main board that incorporates unique features tailored specifically for high-end network audio. This ensures optimal performance and unparalleled sound quality, allowing you to experience your music like never before.

With DELA's innovative link speed selector and various connector options, you can easily tailor the S1 to create the perfect network environment for your audio system. Whether you’re a casual listener or a dedicated audiophile, the S1 provides the flexibility you need to achieve the best possible audio experience.

Elevate your listening experience with the S1 Network Switch—where cutting-edge technology meets exquisite sound quality.

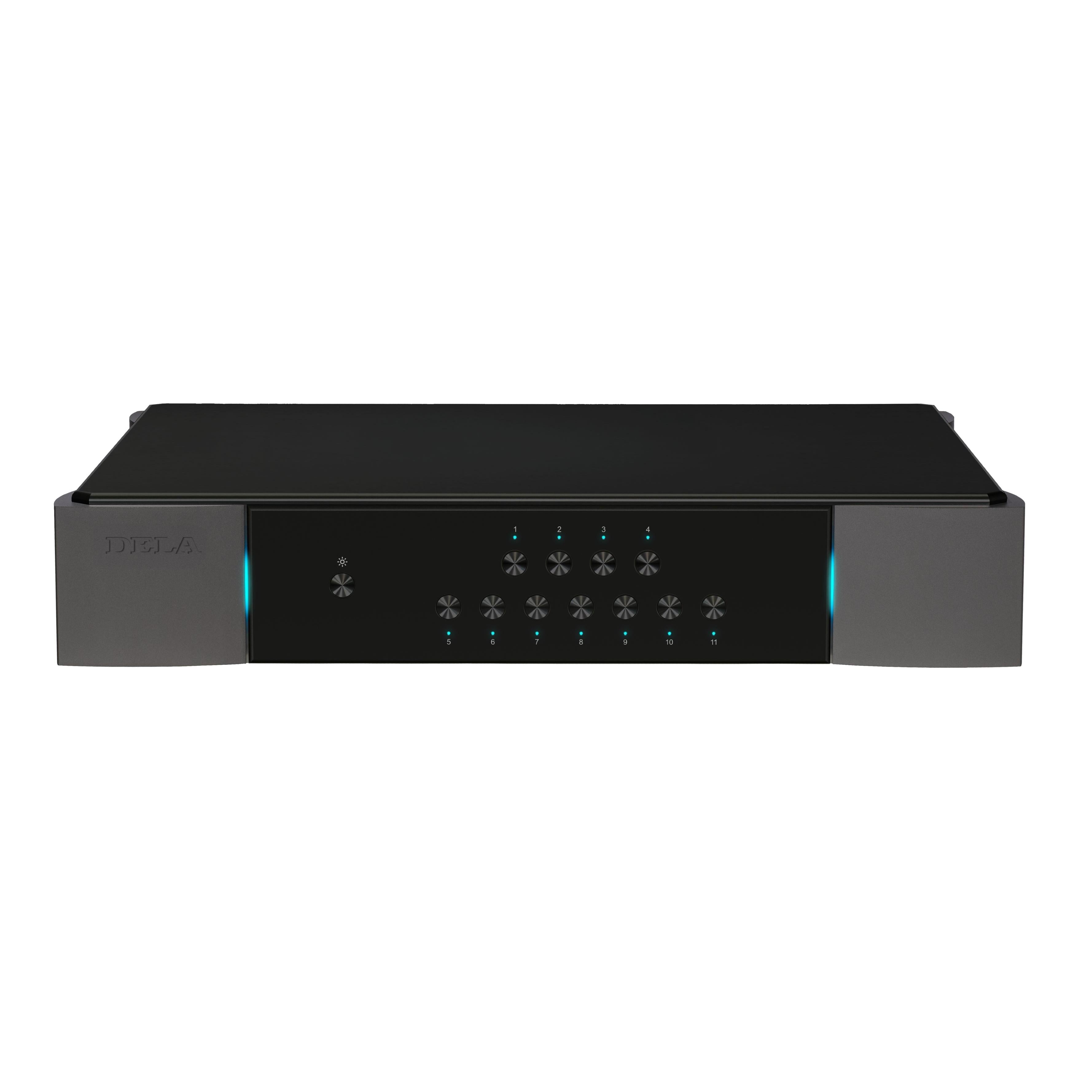

Available in Silver or Black.

FEATURES

Full-size Chassis:
The S1 features a robust 3mm stainless steel chassis with thick aluminum panels for enhanced durability and vibration resistance.

Power Supply:
It includes a large transformer and  capacitor bank.

Ultra-Low Jitter Clock:
Utilizes an NDK ultra-low jitter clock and supports 10MHz external clock input.

Connectivity:
Equipped with x4 SFP+ compatible ports*1 and x7 Neutrik RJ45 LAN ports. The increasingly important SFP+ ports support 10Gbps SFP+ modules and DELA SFP direct attach cable ‘C1.’ The RJ45 ports use Neutrik ports, known for their high mating accuracy and robustness.

Link speed selector:
DELA S1 features a front button that allows variable speed adjustment for all ports. The RJ45 LAN ports can be set to 1Gbps, 100Mbps, or 10Mbps, and the SFP+ ports can switch from 1Gbps to 10Gbps.*2

*1: The number of usable ports may be limited depending on the module used. The total maximum supply current for the S1’s x4 SFP+ ports is 1.8A (DC 3.3V). Please check the specifications of the modules. Additionally, our SFP Direct Attach Cable “C1” can be connected simultaneously to all four ports.

*2: There are combinations that cannot be switched due to the specifications of the SFP modules or cables. For example, if the module and cable connected to the S1 are 1Gbps compatible and the speed setting is 1Gbps, but the module used in the connected device is 10Gbps compatible, communication will not be possible.

Disabling unused ports:
Not only can the speed be changed, but unused ports can be electrically completely shut down. This allows you to optimize the network according to the usage status of the connected devices.

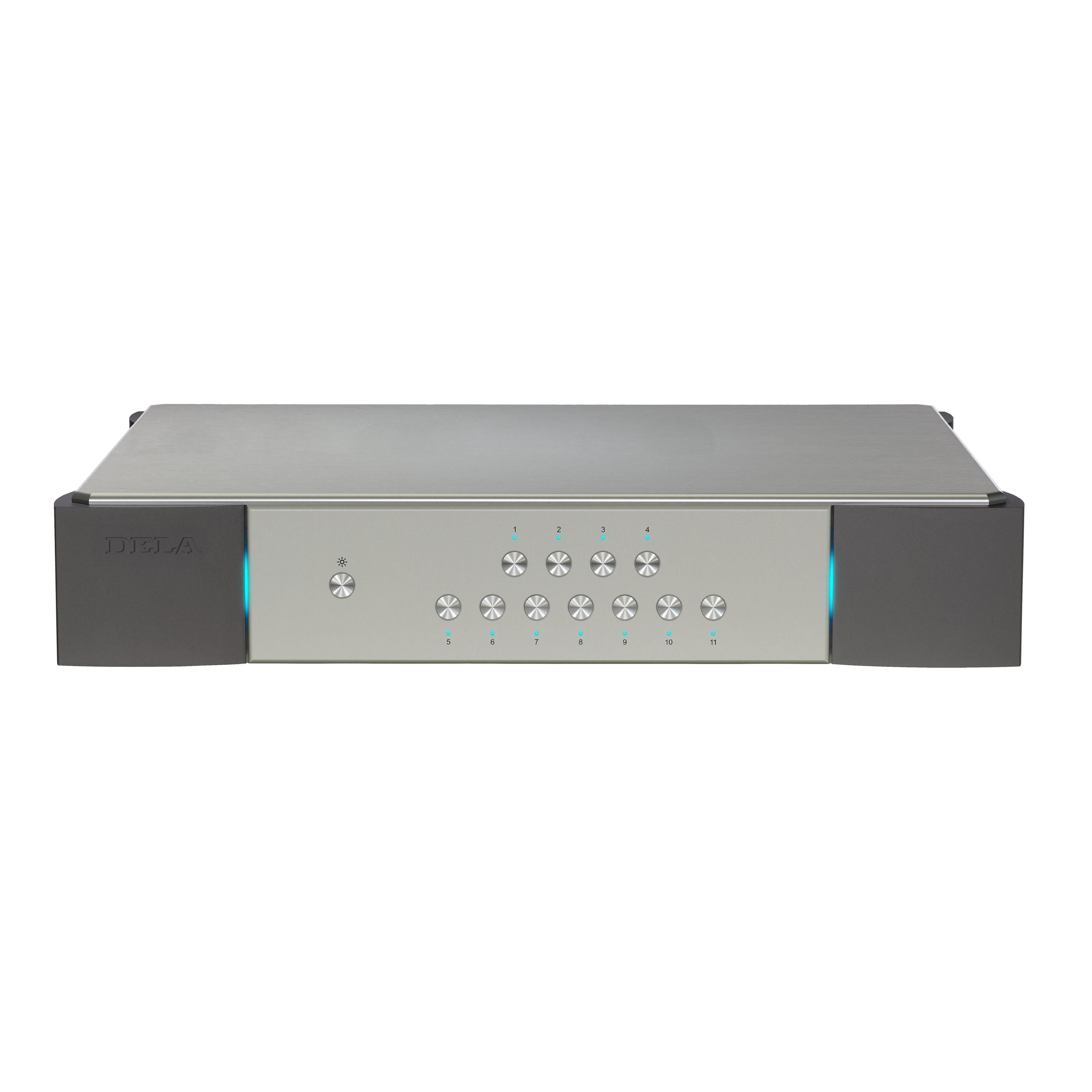

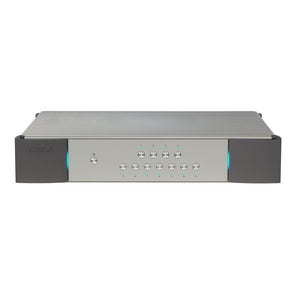

Front color LED indicators:
The communication speed of each port is displayed using color LEDs, with 1Gbps (light blue) as the standard, allowing for easy visual confirmation of speed changes. Front-mounted dimmer button is to adjust LED brightness. The LEDs indicating operational status on the left and right sides of the front panel, as well as the color LEDs on the button section, can be dimmed using the dimmer buttons. (The LEDs on the button section can be turned off.)

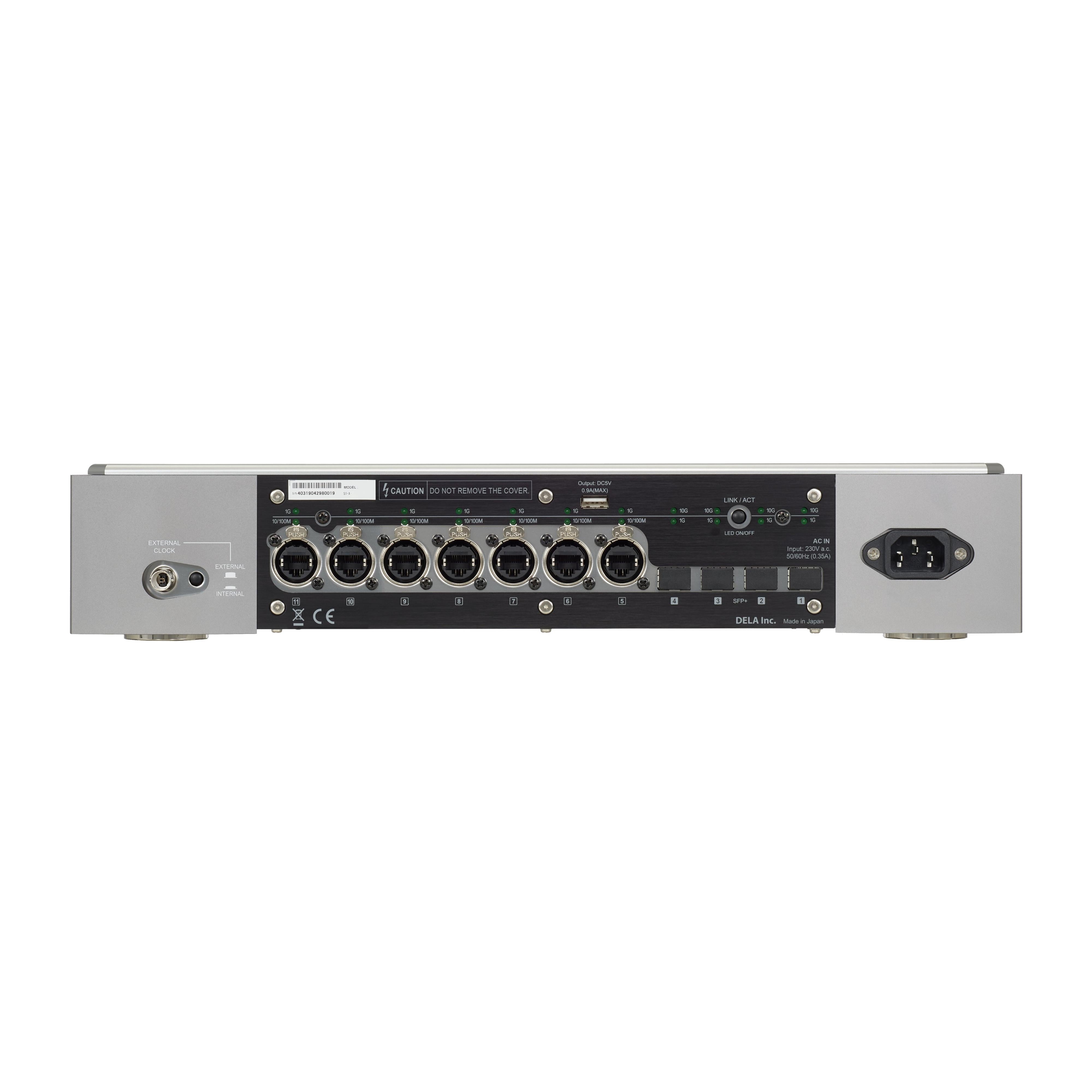

Rear panel LED indicatiors
The rear panel, where the LED port connectors are lined up, is also equipped with LEDs that are convenient for checking connections and communication speeds. After confirming the connections, you can turn off the LEDs by pressing a button, eliminating the influence of LED control.

Made in Japan:
S1 is made by a highly-trained “master.” The factory is located in Nagoya, Aich Prefecture, which has historically been renowned for its manufacturing industry.
