Auralic - ARIES G3 - Wireless Streaming Processor

Going beyond being just a simple transport or bridge, Aries G3 has multiple inputs and a powerful co-processor that enables it to function as a preamplifier for digital connections. This makes the ARIES G3 an ideal centrepiece for your digital system.

ARIES G3 Specifications

Streaming Input

Network shared folder

USB removable drive

Optional Internal music storage

UPnP/DLNA media server

TIDAL, Qobuz, Amazon Music Limited, HRA, KKBOX

vTuner and TuneIn Radio

Spotify Connect, TIDAL Connect

AirPlay, Bluetooth

Roon Ready

File Format

AAC, AIFF, ALAC, APE, DFF, DSF, FLAC,

MP3, OGG, WAV, WV and WMA

Sampling Rate

PCM in 44.1KHz – 384KHz at 16 -32 bits

DSD64 – DSD512 (DoP and Native)

Processing Platform

AURALiC Tesla G3 64bit quad-core central processor

AURALiC Proteus X1 FPGA co-processor

Music Storage

Optional NVMe internal SSD/HDD

With no capacity limitation

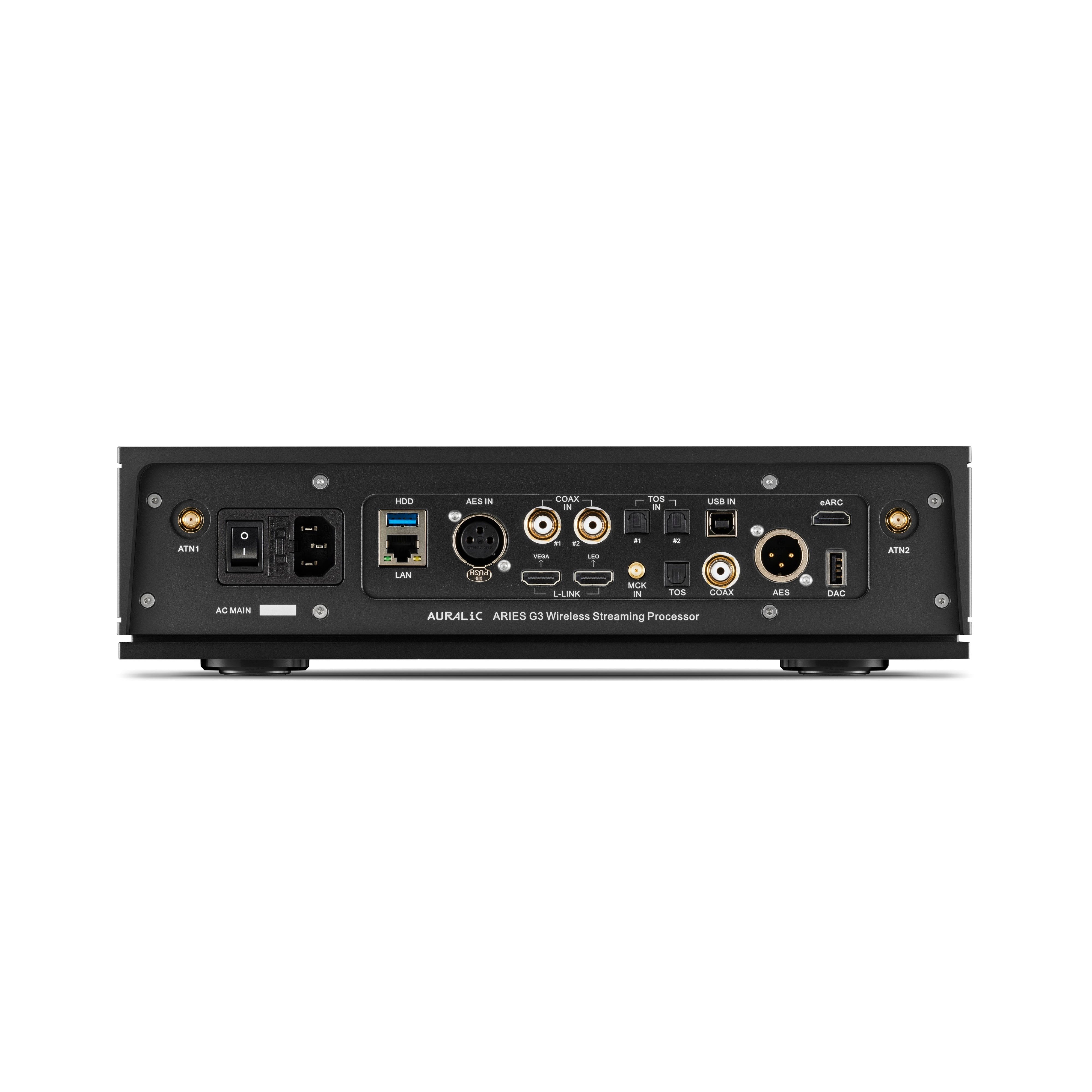

Audio Input

Streaming through 802.11ac WiFi and Ethernet

AES/EBU, Coaxial (2), Toslink (2), USB Audio, HDMI eARC

Audio Output

AES/EBU, Coaxial, Toslink, USB Host Audio

AURALiC Lightning Link

Internal Clock

60fs Dual Femto Clock

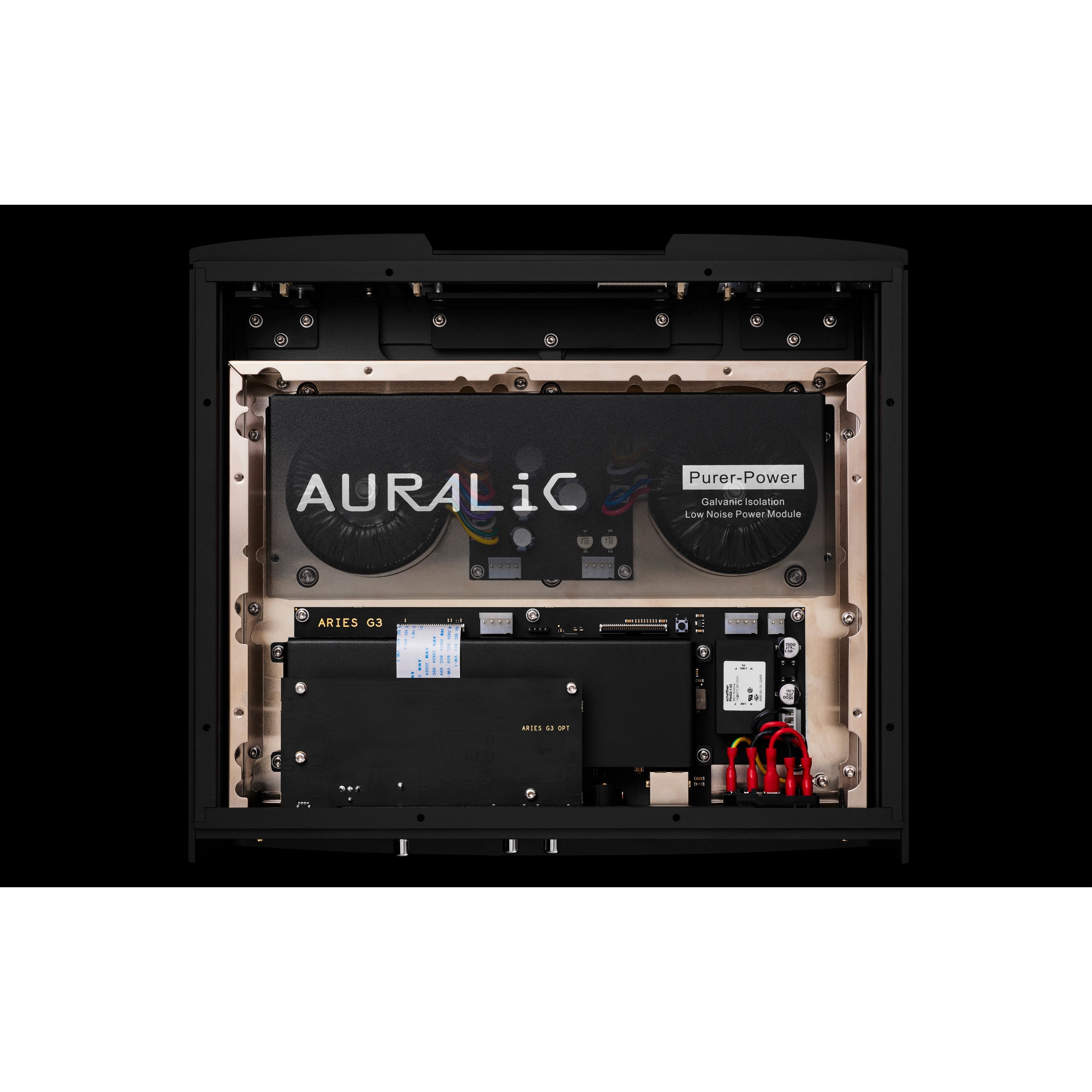

Power Supply

Dual Purer-Power internal linear power supply

0.8V low noise design for audio circuit

Noise Elimination

Dual Galvanic Isolation Digital and USB Audio

EMI-shielding Unity Chassis II

On-Device Display

3.97-inch retina resolution display

Control Software

Lightning DS

Roon

3rd party OpenHome control software

Dimensions

340mm*320mm*80mm (W*D*H)

Weight

10.4kgs

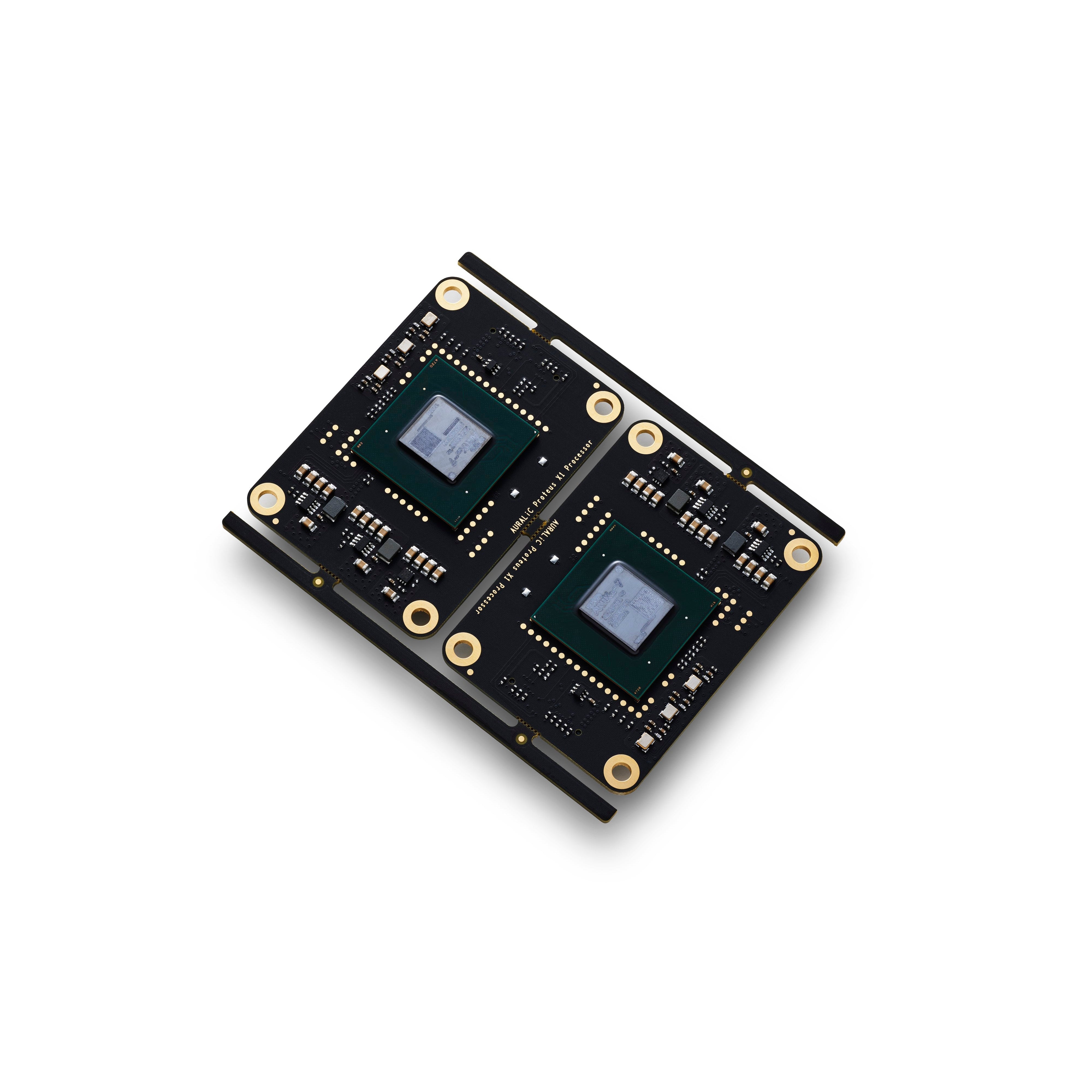

Proteus X1 Co-Processor

Proteus X1 co-processor is built around a Xilinx XC7A200T FPGA chip with over 200,000 logic cells and 740 DSP slices. This chip shares the Tesla G3 system memory, enabling powerful data processing capabilities. With advanced processing techniques, Proteus X1 elevates the listening experience. Sub optimal and early digital recordings can benefit from Proteus X1's impressive processing power. The optimization process removes harshness and potentially improves the experience of listening to an inferior recording. Music gains substance, space, and extra dynamic range as a result.

Multiple Digital Inputs

The ARIES G3 offers a comprehensive range of digital inputs, including USB Audio, Coaxial (2), Toslink (2), AES/EBU, and HDMI eARC (to be added via a software update in the future). Incoming signals from these inputs are recorded as binary data into the Tesla G3's memory, which eliminates any potential for jitter. The data can then be processed and corrected using Proteus X1, based on the user's preferences, before being outputted either as processed or bit-perfectly, with a defined latency, to the desired output channel.

Dual 60fs Femto Clock

ARIES G3 aims to be the best possible digital audio source, achieved by the implementation of a dual 60fs Femto clocks - one for 44.1x and another for 48x sampling rate frequencies. These audio-optimized clocks have extremely low close-in phase noise and can greatly enhance sound quality, setting a new standard for signal timing. For the ultimate performance, adding LEO GX.1 will deliver a true state-of-the-art digital source experience.

Tesla G3 - A New Era for Wireless Streaming

 Built on a 64-bit ARM architecture, this revolutionary streaming platform delivers eight times the processing capability of its predecessor. Equipped with 4GB of DDR4 system memory, the Tesla G3 can easily handle even the most demanding processing tasks, making it a future-proof solution which will accommodate the rapidly evolving digital audio landscape.

The Tesla G3 platform also employs Direct Memory Access (DMA) technology for its audio input and output channels, enabling all audio-related hardware and software to access the system memory directly. This significantly reduces latency and jitter by 90% compared to Tesla G2, giving us more flexibility to fine-tune the performance and sound quality of our products.

With these advancements, the Tesla G3 optimizes operations and enhances multitasking capabilities in all the new G2.2 and G3 series products, providing you with an unparalleled streaming experience.
