2 line outputs (Cinch and XLR)
7 digital inputs: 2 x USB (work without external driver installation), 2 x SPDIF, 2 x optical, AES/EBU
2 digital outputs (SPDIF, optical)
PureCD mechanism with slot-in, suspended mounting
Signal processing with up to 192 kHz / 24 Bit (Upsampling rate is adjustable from 44,1kHz/16bit up to 192kHz/24bit)
2 separate, oversized power supplies (no leak field) for CD Drive and signal processing electronic circuitry with stand-by < 1 Watt
Large bright blue graphical display, dimmable
Full metal aluminum remote control included
Remote control via RS232. Connector for external infrared receiver
Multiple functions accessible via menu: autoplay, track, etc.

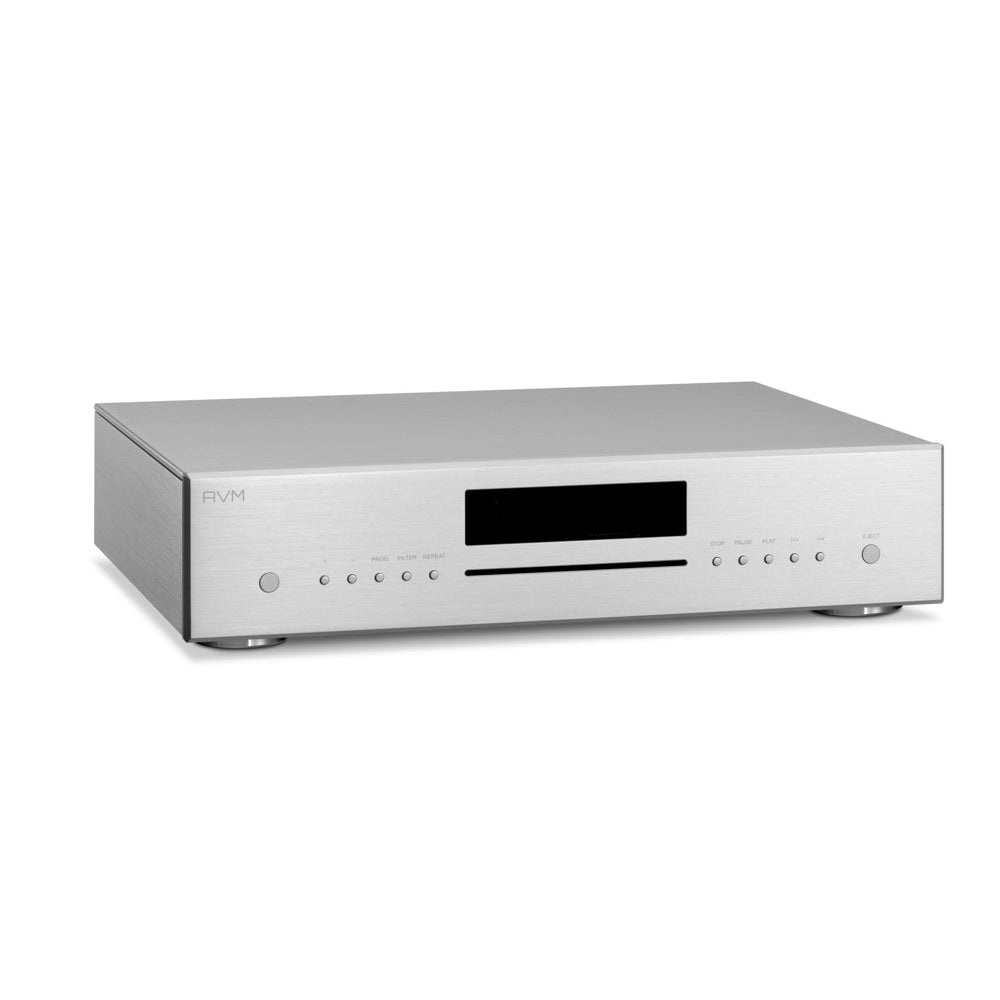

Case made of solid aluminum anodized in silver or black, chrome front available (option)

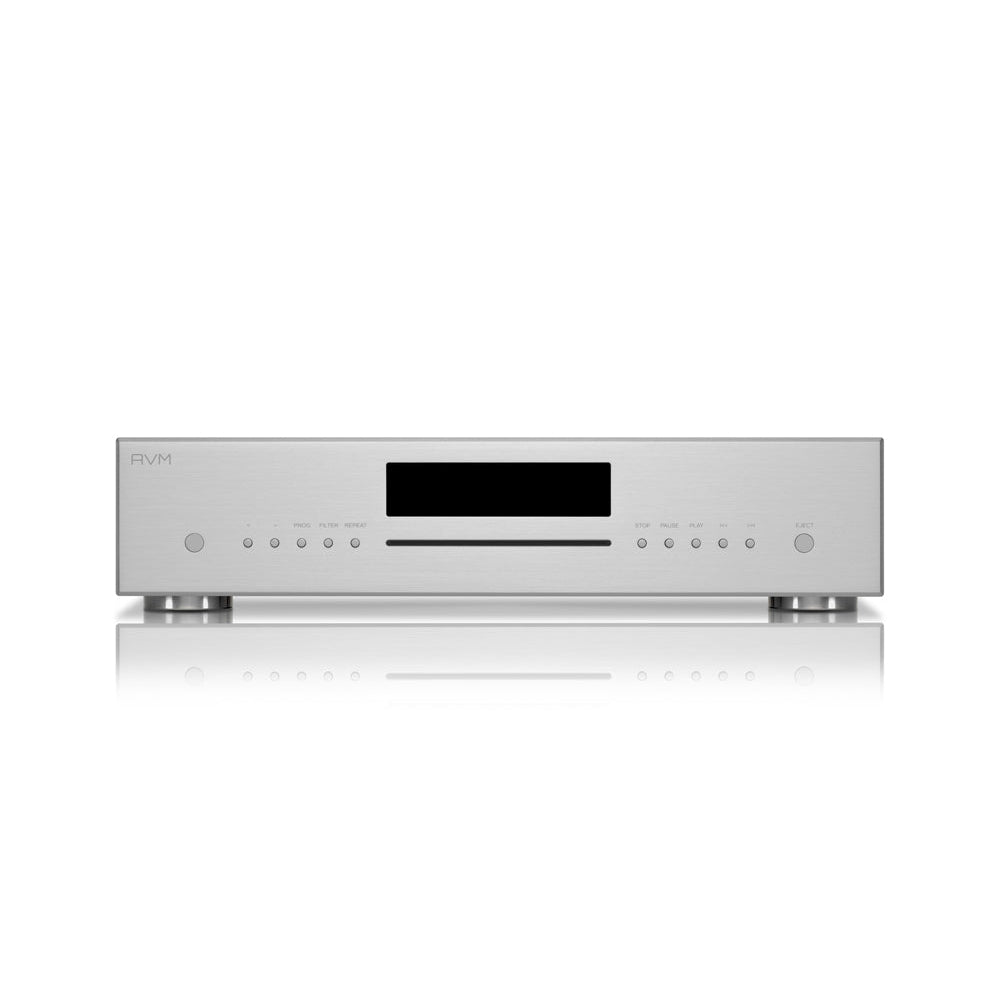

Premium musical quality and design as a true synthesis of elegance and functionality and intuitive handling are our benchmarks when creating the CD3.2. This hi-fi component impresses by its beautiful musicality and its enormous versatility in processing digital signals. Rounded off with 7 digital inputs, the CD3.2 becomes the center of all digital gear in a home system. The perfect finish of the aluminum case expressly underlines the tonal excellence of the built-in electronic circuitry. The CD3.2 offers a large variety of connectivity and control options: USB DAC input (without external driver installation) and six digital inputs in all possible shapes (AES EBU, coaxial, optical).

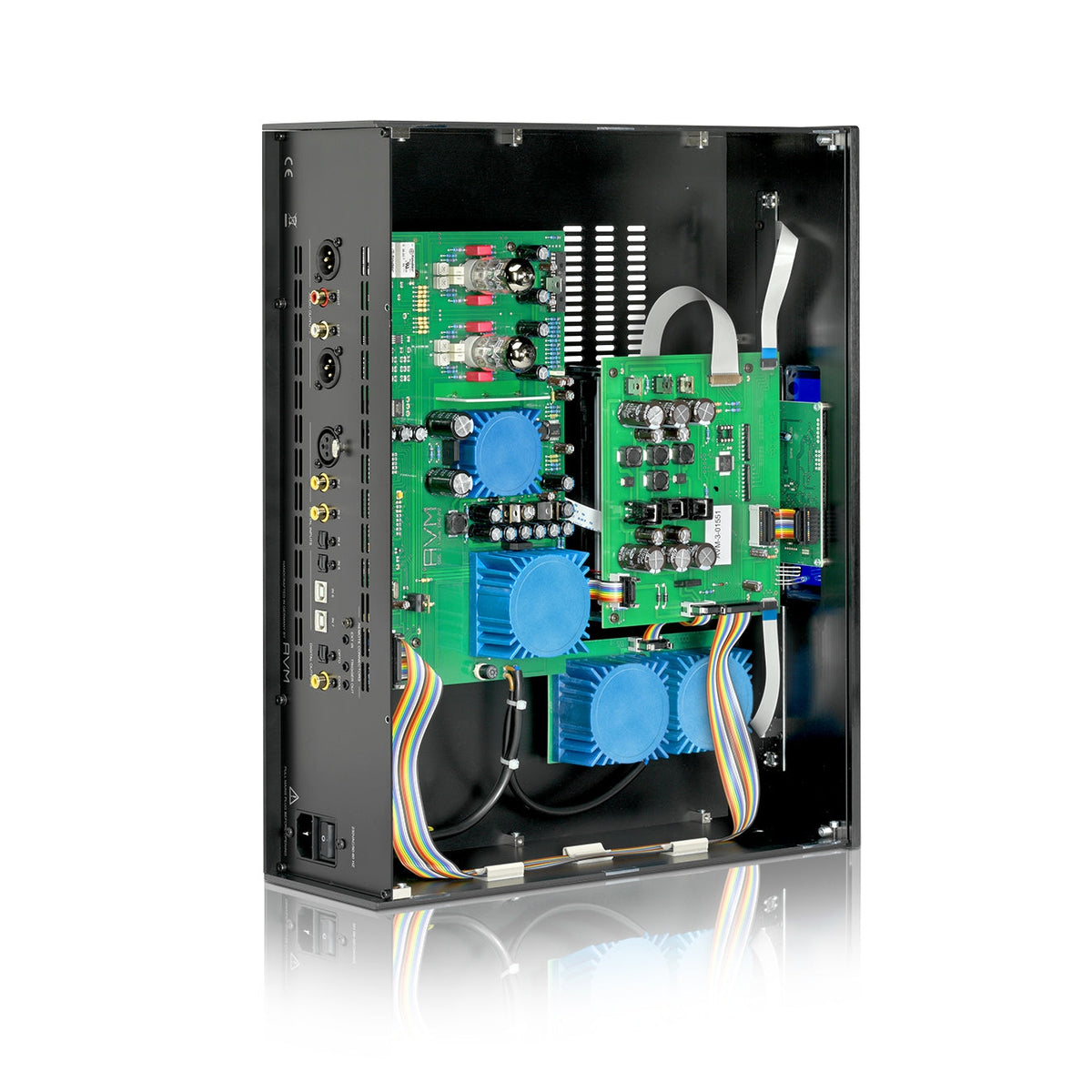

The RS232- control and the port for an external IR-sensor allow the operation in custom installation environments. The XLR- and cinch outputs spark separate driver stages and may be operated simultaneously. Cutting edge technology is applied when digital signals are being processed in the CD3.2. Both channels offer separate DA converter chips, operated in double mono configuration. This results in optimized signal to noise ratios and eliminates distortions almost completely. The upsampling circuitry allows an individual adjustment filter characteristics and sampling rate alike. By using upsampling technology the master tact for the digital signal is generated internally and makes the signal processing independent from the master tact stored on the CD, possible jitter originating from the CD is eliminated in this way.
The PureCD drive with the slot-in loader is shielded against acoustical influences and rests in a suspended mounting, which protects the CD drive against footfall. During the manufacturing process we perform repeatedly numerous tests to insure the absolute quality of our products. When the assembling is finished and the first inspection is done all units must pass a run in test in order to prove their reliability. After that a careful final inspection follows before packing & shipping. All this ensures creating a perfect product from AVM for our customers.
Technical data EVOLUTION CD3.2 CD
digital in/out CD formats CD-Audio (red book), CD-R
Upsampling 192 kHz / 24 Bit adjustable
Deemphasis yes, automatic
Digital inputs: 33–192 kHz / 16–24 Bit (S/PDIF, AES/EBU, TOSLINK up to 96 kHz) USB inputs up to 48 kHz / 16 Bit
Digital outputs: 44,1 kHz / 16 Bit (CD) (S/PDIF, TOSLINK) or input format
Digital inputs: Input impedance cinch 75 Ohm Input impedance XLR (AES EBU) 110 Ohm Input voltages according IEC 958
Digital outputs: Output impedance Cinch 75 Ohm
Output impedance XLR 110 Ohm Output voltage according IEC 958
Analog outputs: Output voltage 2,5V Output impedance Cinch 50 Ohm Output impedance XLR 150 Ohm Frequency range <5 Hz – 20 kHz, via digital inputs > 50 kHz SNR 118 dB / 121 dB(A) (rel. to digital 0)
General Power supply 120V/60Hz, 230V/50Hz
Power consumption max. 12 W Standby <1 W
Measurements (W x H x D) 430 x 100 x 325 mm Weight 6 kg
