Chord Electronics - 2YU - Digital Bridge
Chord Electronics - 2YU - Digital Bridge
Chord Electronics - 2YU - Digital Bridge
Chord Electronics - 2YU - Digital Bridge
Chord Electronics - 2YU - Digital Bridge

    Chord Electronics - 2YU - Digital Bridge

    $1,199.00
    2yu - Music Digital Bridge 2yu is a digital interface that connects with 2go to create a network bridge for use with a DAC, DAC-equipped device or the Hugo M Scaler. 2yu connects directly to...
    DESCRIPTION

    2yu - Music Digital Bridge

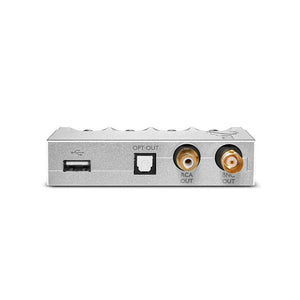

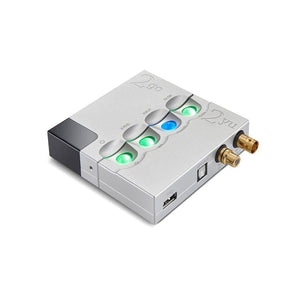

    2yu is a digital interface that connects with 2go to create a network bridge for use with a DAC, DAC-equipped device or the Hugo M Scaler. 2yu connects directly to 2go to add TOSLINK optical S/PDIF, coaxial and BNC (both 75 ohms) digital outputs, plus a cleverly integrated USB-A output.

    2yu boasts 2,000 MIPS (million instructions per second) of processing power, an integrated sample rate converter, plus a low-jitter audio phase lock loop. Highly flexible in its potential applications, 2go with 2yu is also ideal for installers wishing to create a discreet remote Roon streaming solution: the duo can be wired into an Ethernet port to provide streaming to a system in any room.

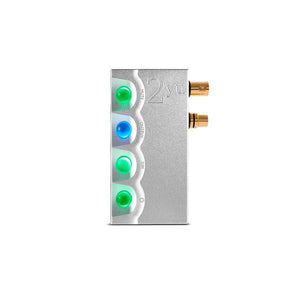

    Like 2go, 2yu is also hand-made in the UK using aircraft-grade aluminium and the same high-quality manufacturing processes inherent in all Chord Electronics products. Like the Hugo 2, 2yu features four polychromatic spherical controls governing output selection, power, mute and dim functions.

    TECHNICAL SPEC

    Compatibility:

    In order for 2yu to inherit streaming/music transport capabilities or function as an audio interface, a connection with 2go is required.

    Power supply:

    Micro USB (5v 1amp minimum required) – through 2go

    PCM and DSD support:

    44.1kHz – 768kHZ | DSD 64 to DSD 256 (Dependant on output)

    Sample rate converter:

    Integrated, automatic downsampling is provided if a higher sample rate is being played than the output can support.

    Digital audio outputs:

    USB Type-A (44.1kHz – 768kHz / DSD 256)

    BNC Coax (44.1kHz – 192kHz /DSD 64)

    RCA Coax (44.1kHz – 192kHz /DSD 64)

    Optical (44.1kHz – 192kHz / DSD 64)

    Processing power:

    2000MIPS
