    Chord Electronics - ULTIMA Pre 3 - Preamplifier

    $13,995.00
    ULTIMA Pre 3 - Five Input Preamplifier This all-new ground-up-design preamplifier contains the very latest proprietary power supply technology and the latest circuit design. Built from the ground up, the ULTIMA PRE 3 takes advantage...
    DESCRIPTION

    ULTIMA Pre 3 - Five Input Preamplifier

    This all-new ground-up-design preamplifier contains the very latest proprietary power supply technology and the latest circuit design.

    Built from the ground up, the ULTIMA PRE 3 takes advantage of the very latest developments in advanced low-distortion power supplies. These advanced devices offer exceptionally low noise and outstanding amplifier operation. Coupled with our latest design developments, the PRE 3 offers new levels of preamplifier performance.

    The ULTIMA PRE 3 is equipped with five analogue inputs (two balanced and three unbalanced) all of which benefit from individual buffering and are selectively filtered against potential ingress from radio frequency interference.

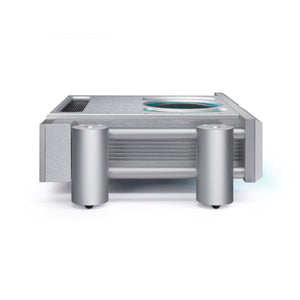

    Externally, the PRE 3 benefits from a completely redesigned aesthetic with a central circular power sphere flanked by a new volume control and balance/AV bypass selector, both of which benefit from a new ergonomic knob design.

    Additional features include an AV bypass, plus a 5 V charging USB Type-A port.

    FEATURES

    Inputs & Outputs:

    Inputs: 2x stereo balanced XLR inputs, 3x stereo unbalanced RCA

    Outputs: 1x stereo XLR, 1x stereo RCA and 1x 5 V charging USB Type-A port

    1x stereo balanced XLR AV bypass input

    1 x 12 V trigger output/input



      TECHNICAL SPEC

       Frequency response

      10 Hz-200 kHz +/- 3 dB

      THD

      0.002 % 20Hz-20 kHz

      Signal to noise ratio

      -105 dB on all inputs

      Input impedance

      100 kΩ

      Output impedance

      560 Ω

      Input maximum voltage

      10 V RMS

      Output maximum voltage

      17 V RMS

      Gain

      x1

      Channel separation

      100 dB

      Operation voltage

      80-250 V AC auto-switching

      Power consumption

      40 W

      Dimensions with included Integra legs:

      13cm(H) x 48cm(W) x 34cm(D)
      Dimensions with optional Side Blocks (can not be stacked):
      10cm(H) x 42cm(W) x 34cm(D)

      Weight:

      12.7 kg
