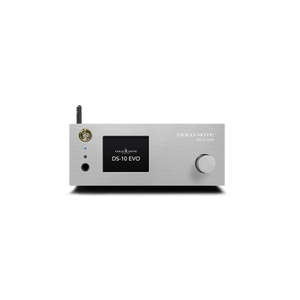

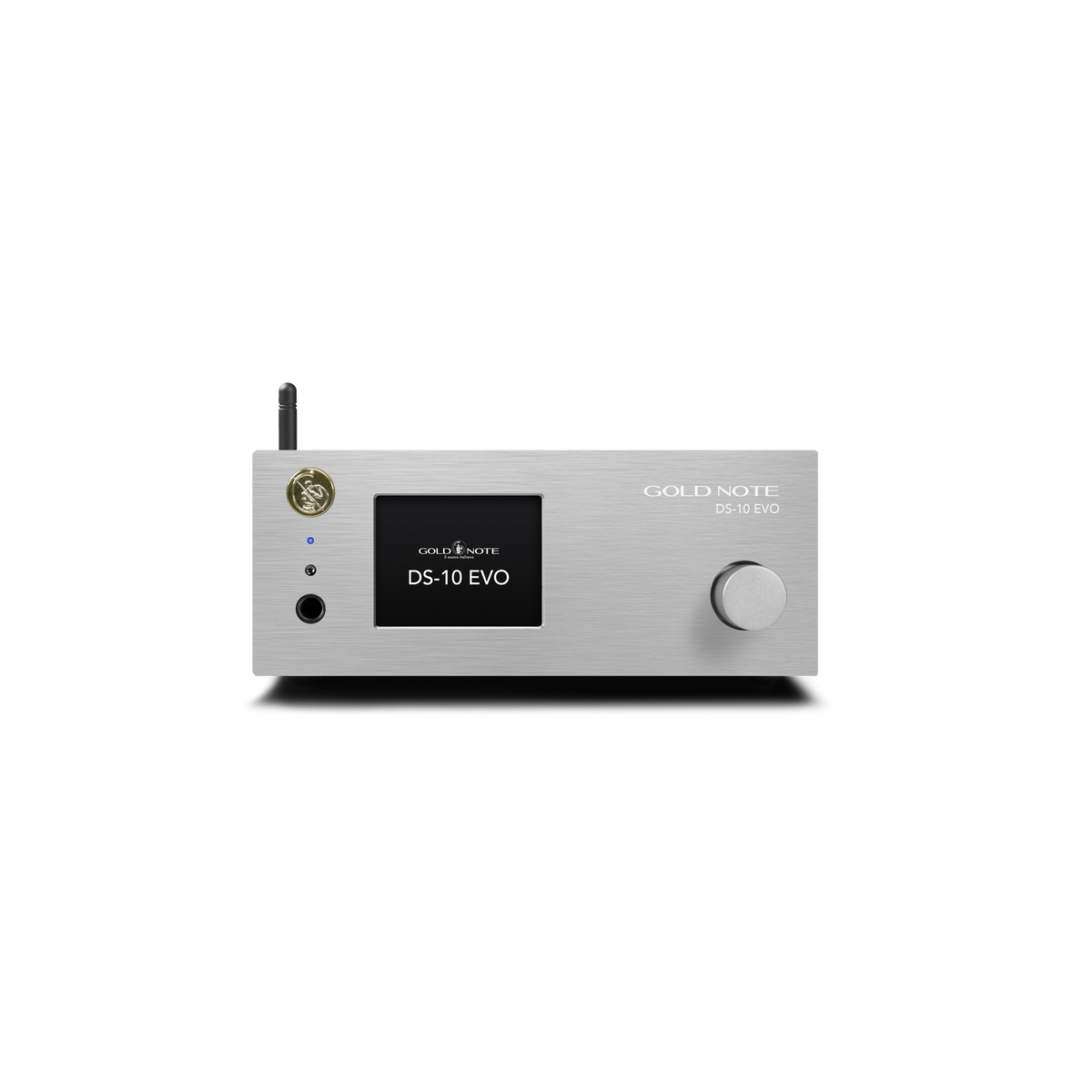

Gold Note – DS-10 EVO – Streaming DAC with Preamplifier and Headphone Output
$5,875.00
-
Lightning Fast Delivery
Your Audio Adventure Begins in No Time!
We know the thrill of unboxing a new gadget, and we won't keep you waiting. With our lightning-fast delivery, your new audio companion will be at your doorstep in no time. We ensure it reaches you in pristine condition, ready to play your favourite tunes.
-
Always Great Pricing
Quality Sound Doesn't Have To Break The Bank!
We believe in offering the best value to our customers. That's why we ensure our pricing is always competitive. Enjoy the superior sound quality of our award-winning products without stretching your budget. Great pricing, without compromising on quality - that's our promise to you.
-
Official Gold Note Dealer
We Only Deal In 100% Authentic Products.
When you purchase from us, you're not just buying a product; you're investing in a genuine audio experience. As an official dealer, we stand by the quality and authenticity of our products. Shop with confidence.

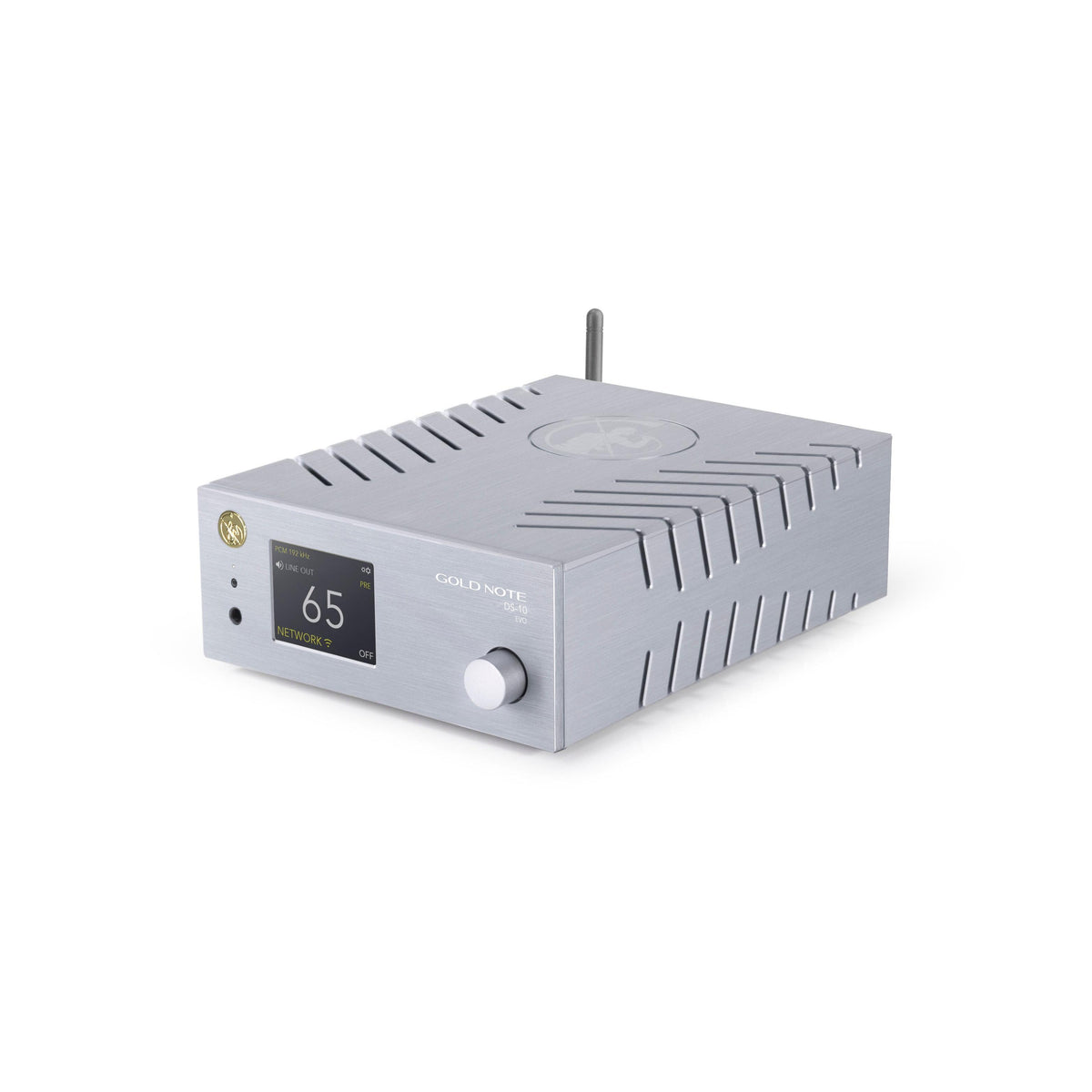

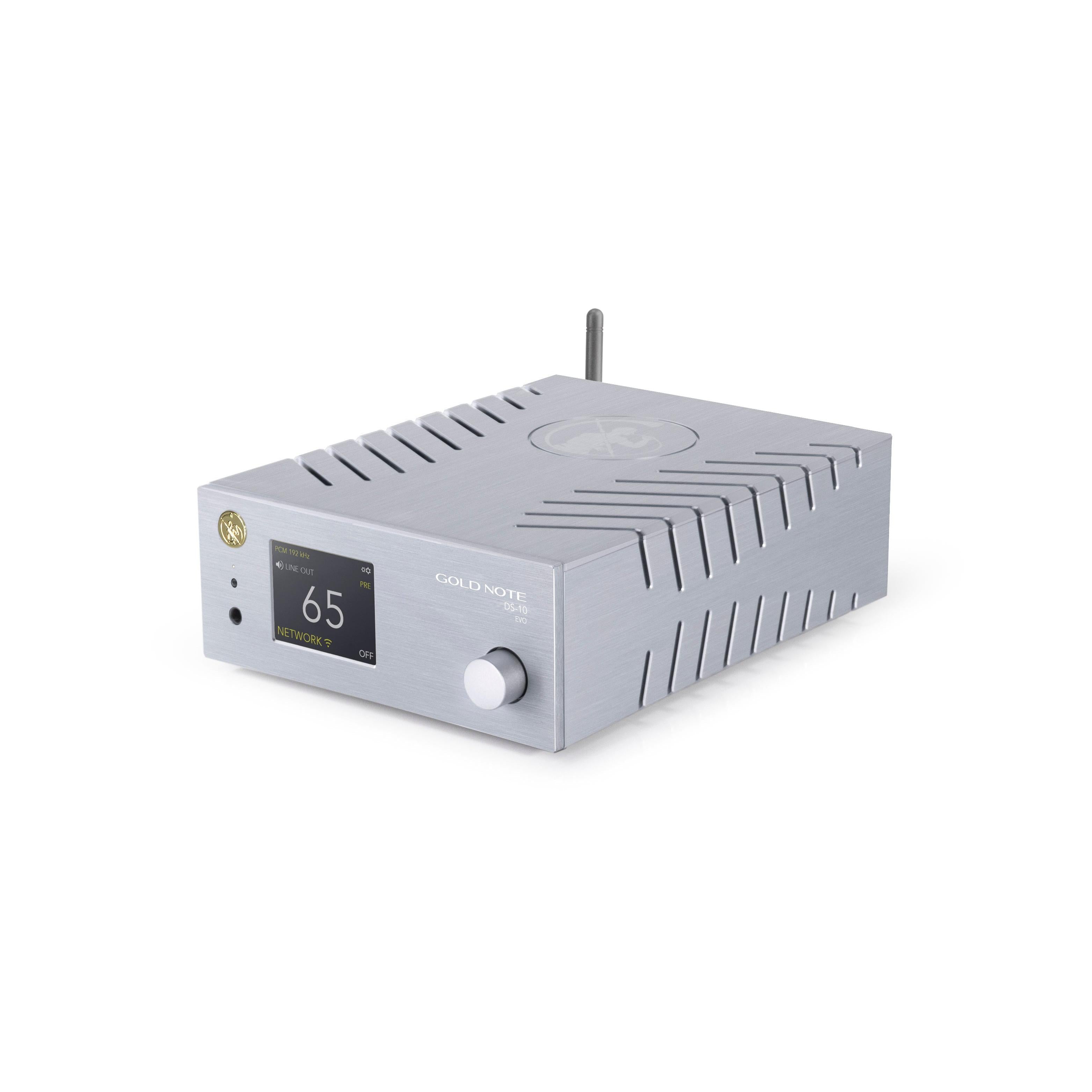

The DS-10 EVO is a versatile streaming DAC that combines a high-quality D/A converter, line preamplifier, and headphone amplifier in a compact aluminium chassis, making it an ideal match for any high-end audio system.
With the DS-10 EVO, you can stream music from Tidal, Qobuz, Spotify, vTuner, and Deezer, or play from local sources such as NAS, USB drives, and smartphones. It is Roon Ready, compatible with UPnP/DLNA and AirPlay 2, and connects to your network via Wi-Fi or Ethernet.
Designed for flexibility, the DS-10 EVO offers real-time adjustment of the DAC profile to match the music you’re listening to. You can tailor de-emphasis parameters, low-pass digital filters, and DSD filters during playback. All settings are accessible quickly and intuitively through the dedicated menu and the 2.8″ TFT display.
Control is simple and convenient: use the SKC knob on the front panel, the Gold Note remote, or the GN Control App. The GN Control App not only offers an intuitive interface on your smartphone or tablet, it also displays track details such as format and resolution and allows easy firmware updates via the internet.
Combined with the PA-10 EVO Power Amplifierand A3 EVO II (or A6 EVO II) loudspeakers, the DS-10 EVO forms the heart of a modern, compact, high-performance audio system.
SPECIFICATIONS
D/A CONVERTER
AKM AK4493 PCM (32bit/768kHz, DSD512)
FREQUENCY RESPONSE
20Hz-20kHz +/-0.1dB
THD (Total Harmonic Distortion)
0.001% max
SIGNAL TO NOISE RATIO
125dB
DYNAMIC RANGE
120dB
OUTPUT IMPEDENCE
50Ω
PREAMP STAGE VOLUME CONTROL
enabled/disabled

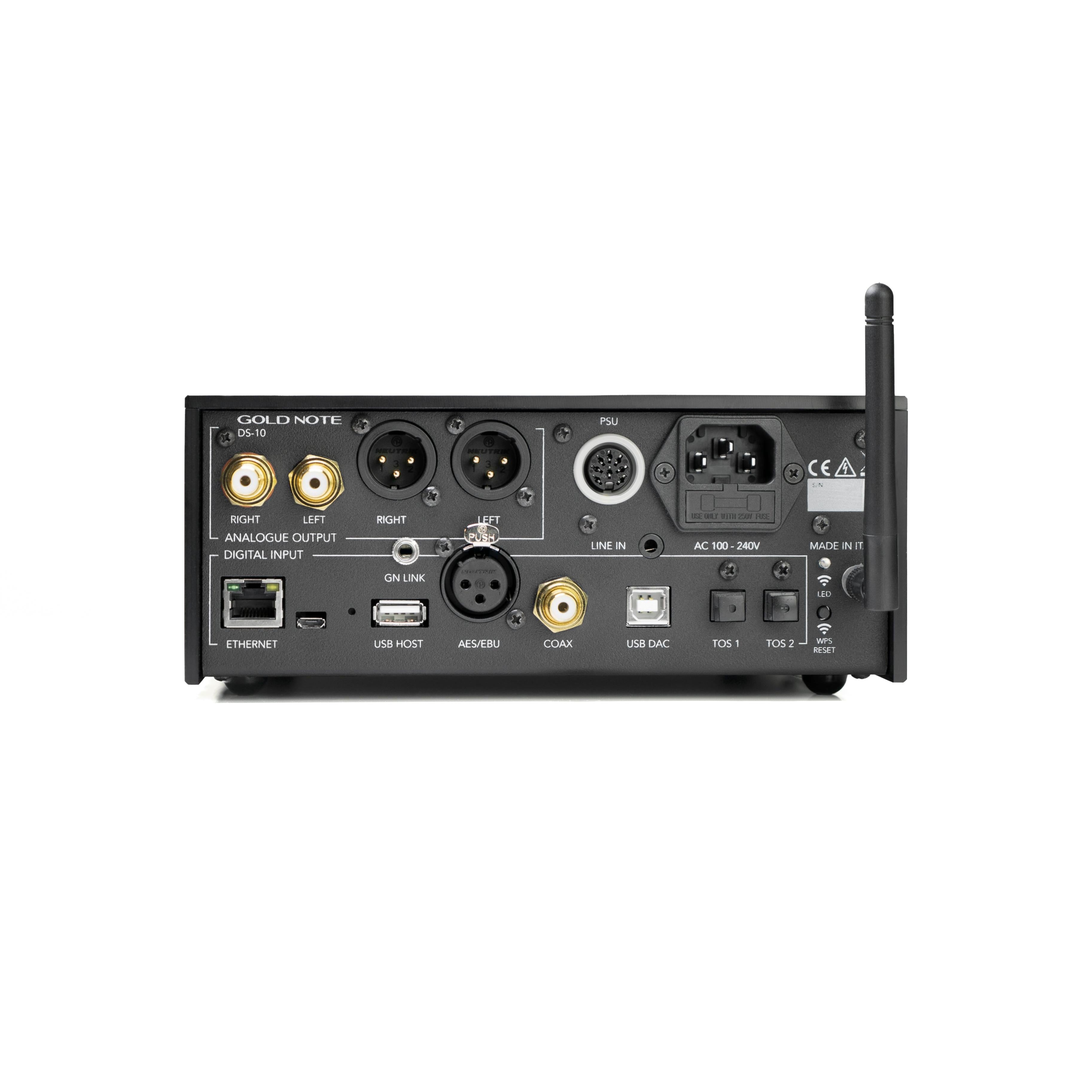

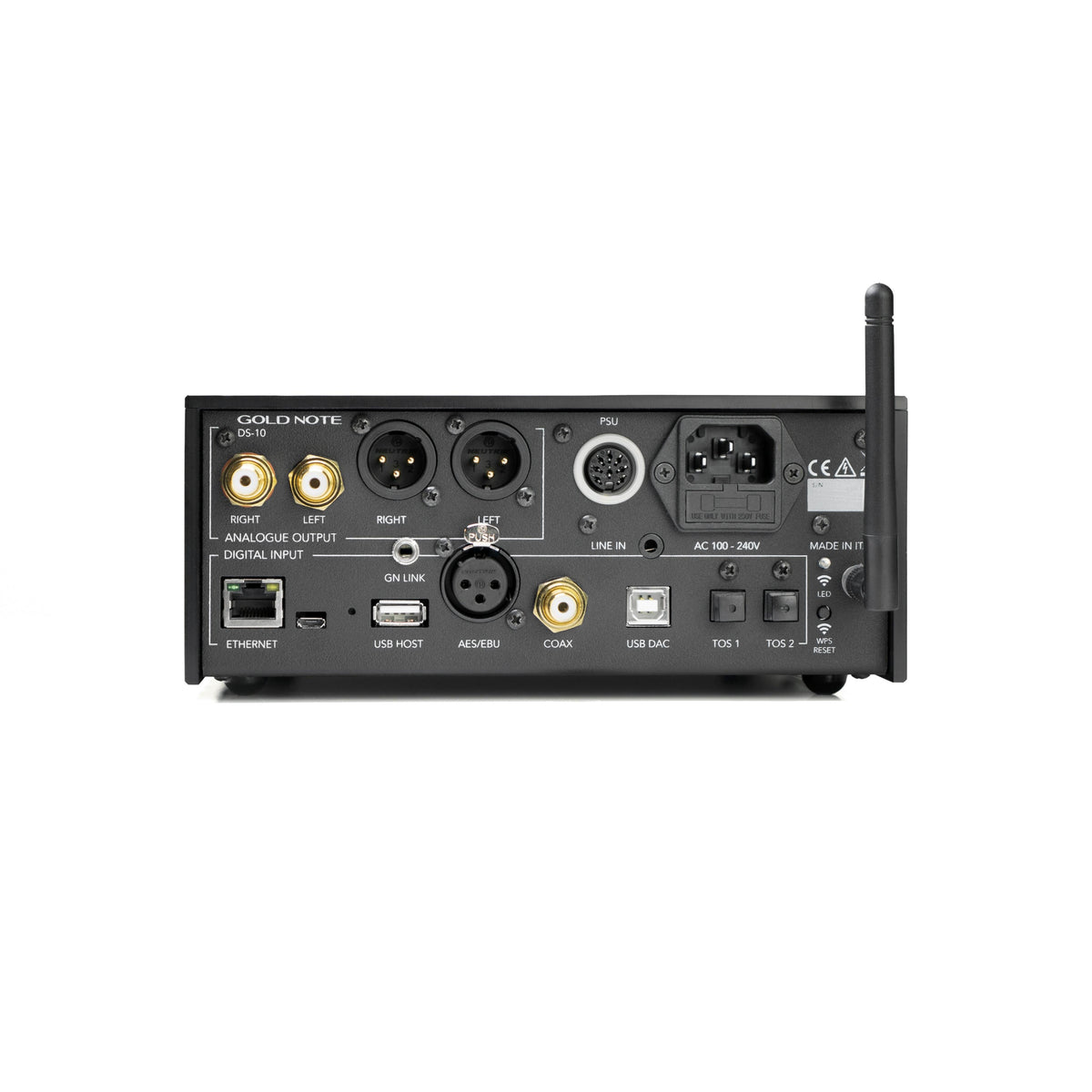

DIGITAL INPUTS
1 x RCA coaxial PCM up to 24bit/192kHz
2 x TOS-optical PCM up to 24bit/192kHz
1 x AES/EBU XLR PCM up to 24bit/192kHz
1 x USB-A port DSD256 and PCM up to 32bit/384kHz, formatted in FAT32/NTFS (32Gb max for pen drives)
1 x USB-B asynchronous up to DSD512 and PCM up to 32bit/384kHz
1 x Network (LAN/WLAN) DSD256 and PCM up to 32bit/384kHz
ANALOGUE INPUT
1 x stereo mini-jack 3.5mm (input impedance 10kΩ)
AUDIO OUTPUTS
DAC
1 x stereo RCA unbalanced 2Vrms
1 x stereo XLR balanced 2Vrms
PREAMP
1 x stereo RCA unbalanced
1 x stereo XLR balanced
1 x headphone (6,3mm jack)
POWER
Power supply: 100-240V / 50-60Hz
Multiple Transformer proprietary power supply
Power consumption: 35W
Fuse: 2A T
NETWORK CONNECTIVITY
LAN/WLAN (WiFi) 10/433Mbps 802.11a/b/g/n/ac Dual Band
Bluetooth: High Definition 5.0 (44/16)
HIGH-QUALITY STREAMING
Tidal, Qobuz, MQA, vTuner, Deezer, Spotify Connect,
Airplay 2, Roon Ready, Tidal Connect
SUPPORTED AUDIO FORMATS (NETWORK)
Up to PCM 32bit/384kHz
AIFF (.aif, .aiff, .aifc)
ALAC
WAV (.wav) packed/unpacked
FLAC
MP3
DSD256: DSF, DFF
Apple Lossless
OGG
Monkey’s
IMPORTANT: UPnP server must support DSD streaming in order to stream DSD files.
SUPPORTED MEDIA SERVERS
All UPnP / DLNA / Roon
DIMENSIONS AND WEIGHT
200 W x 80 H x 260 D mm
Weight: Kg. 4 net - Kg. 5 boxed
FINISHES

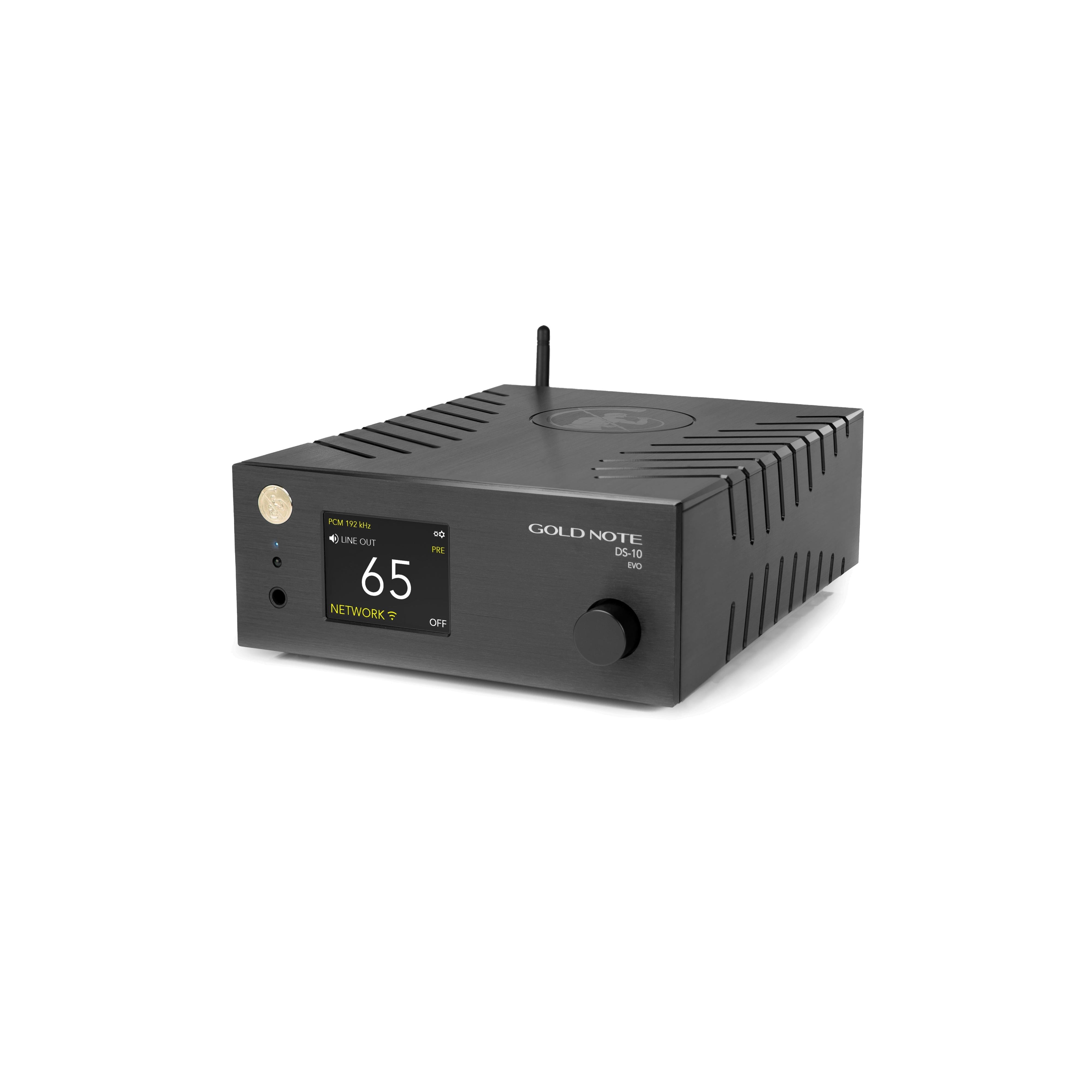

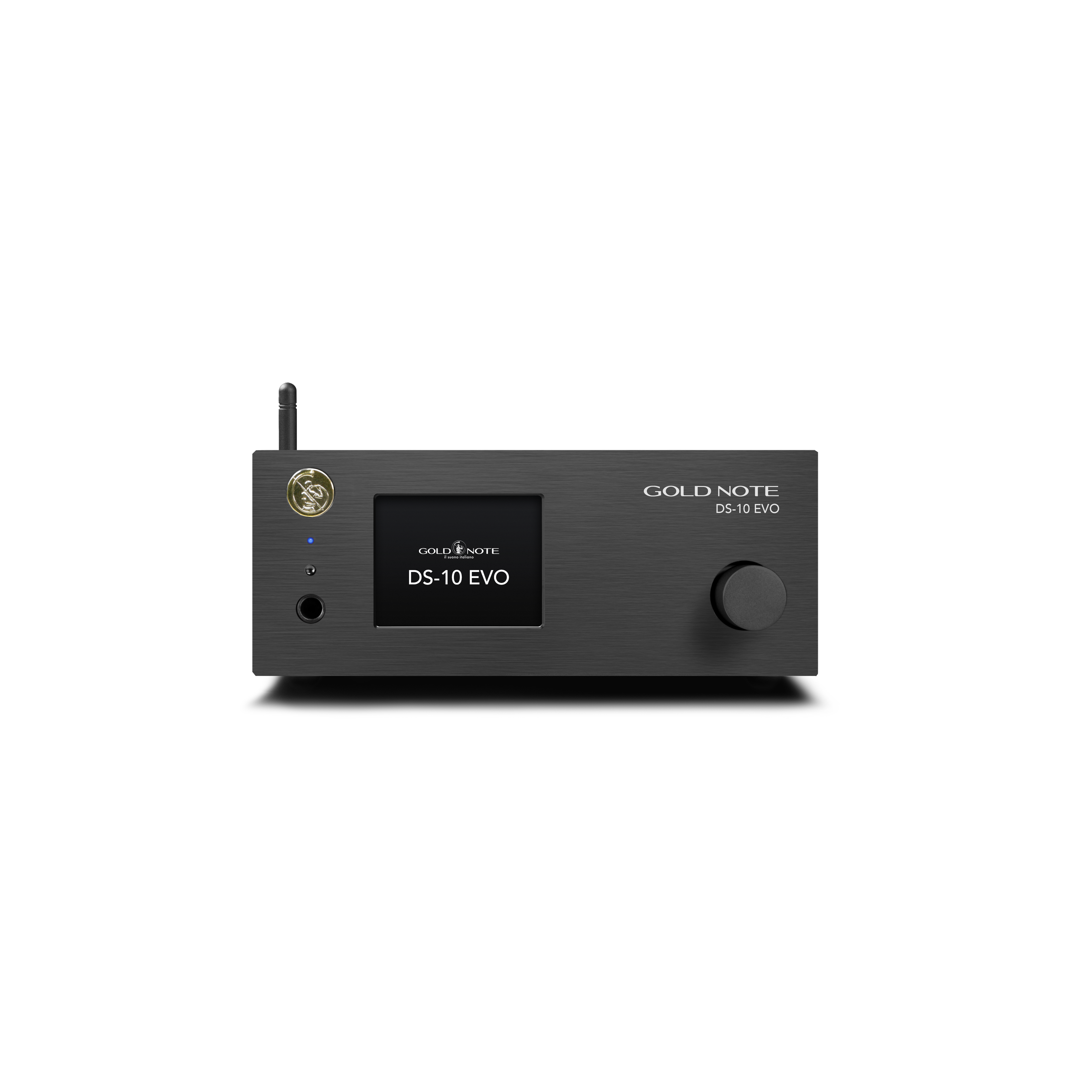

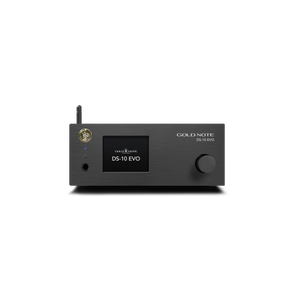

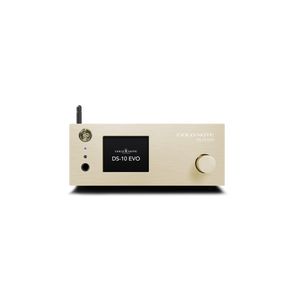

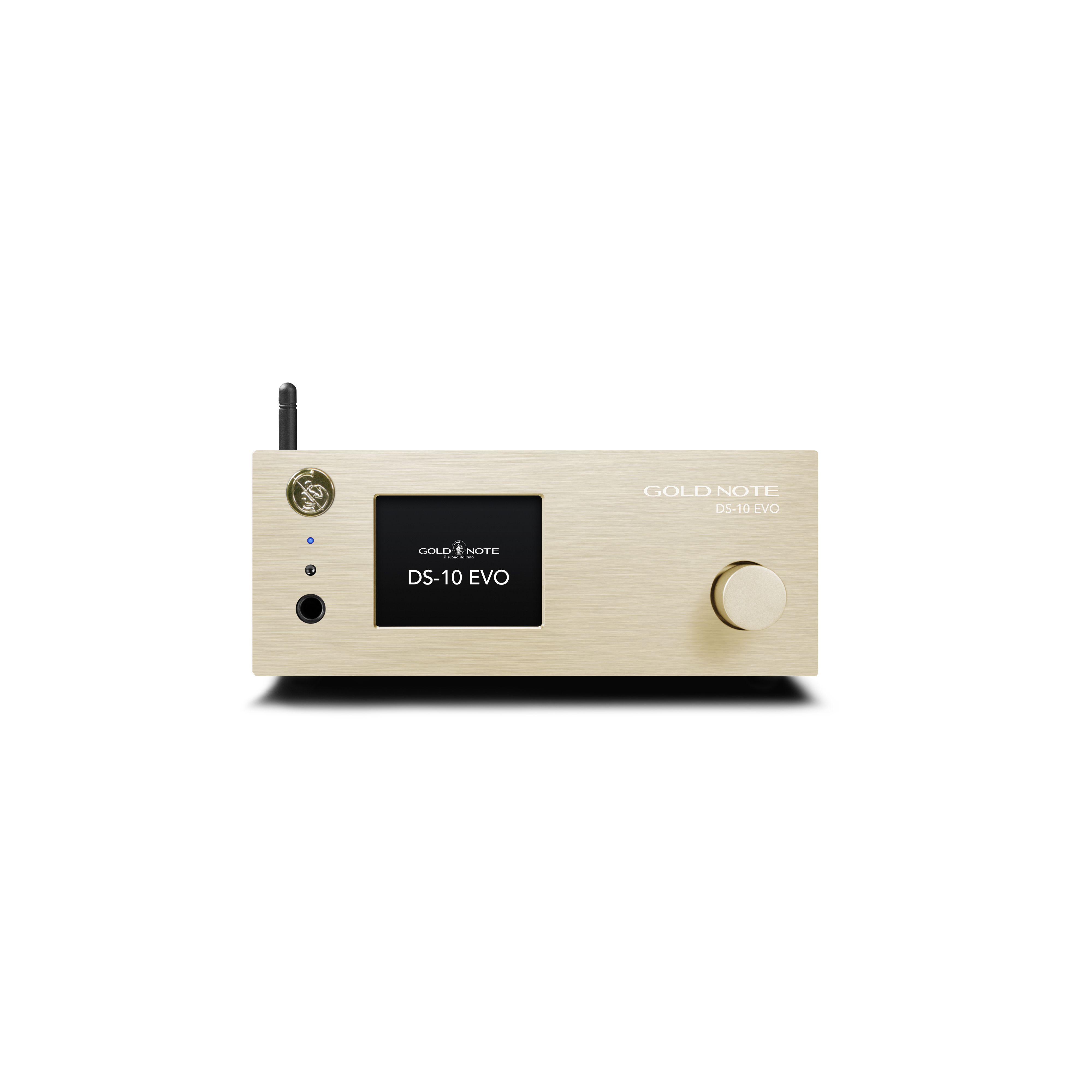

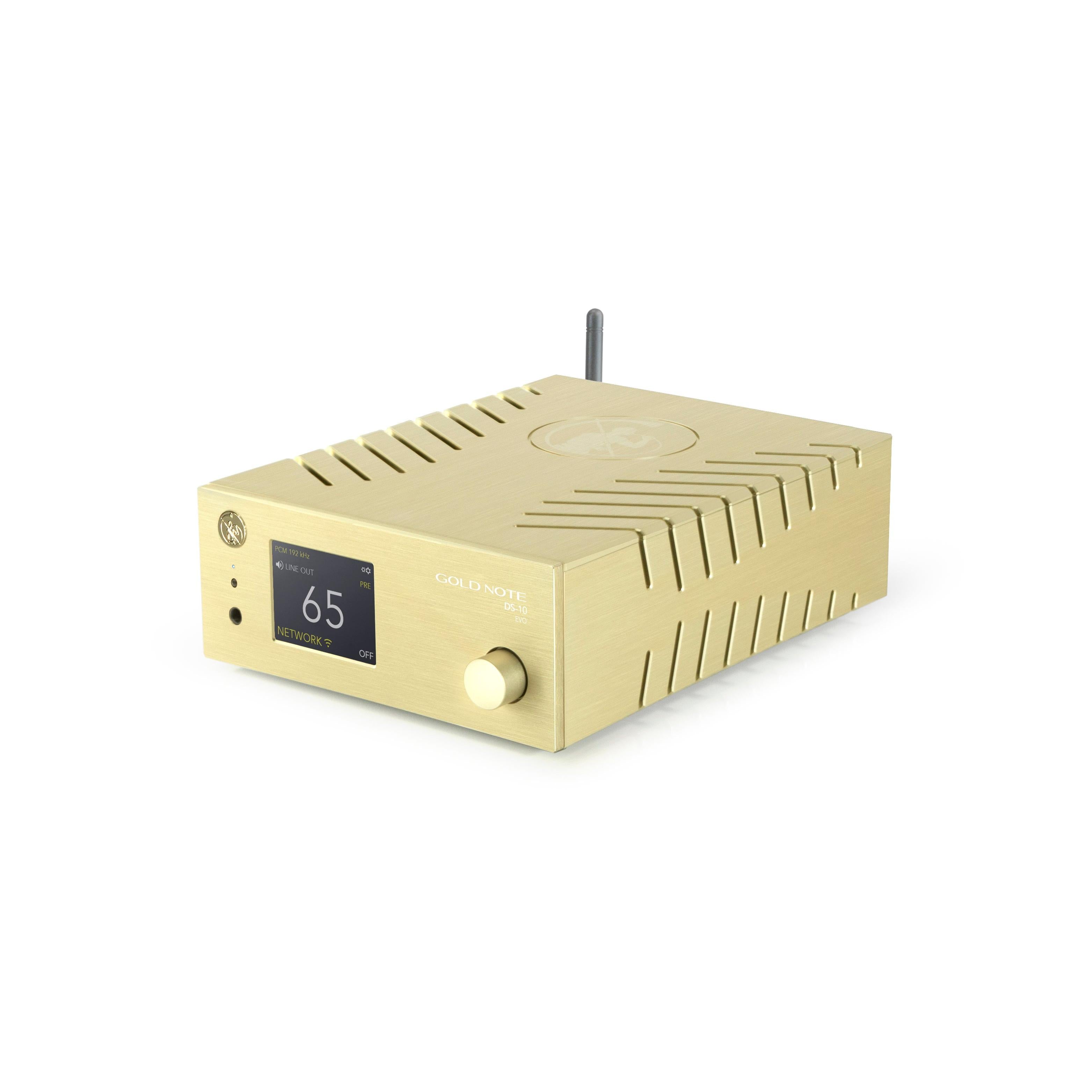

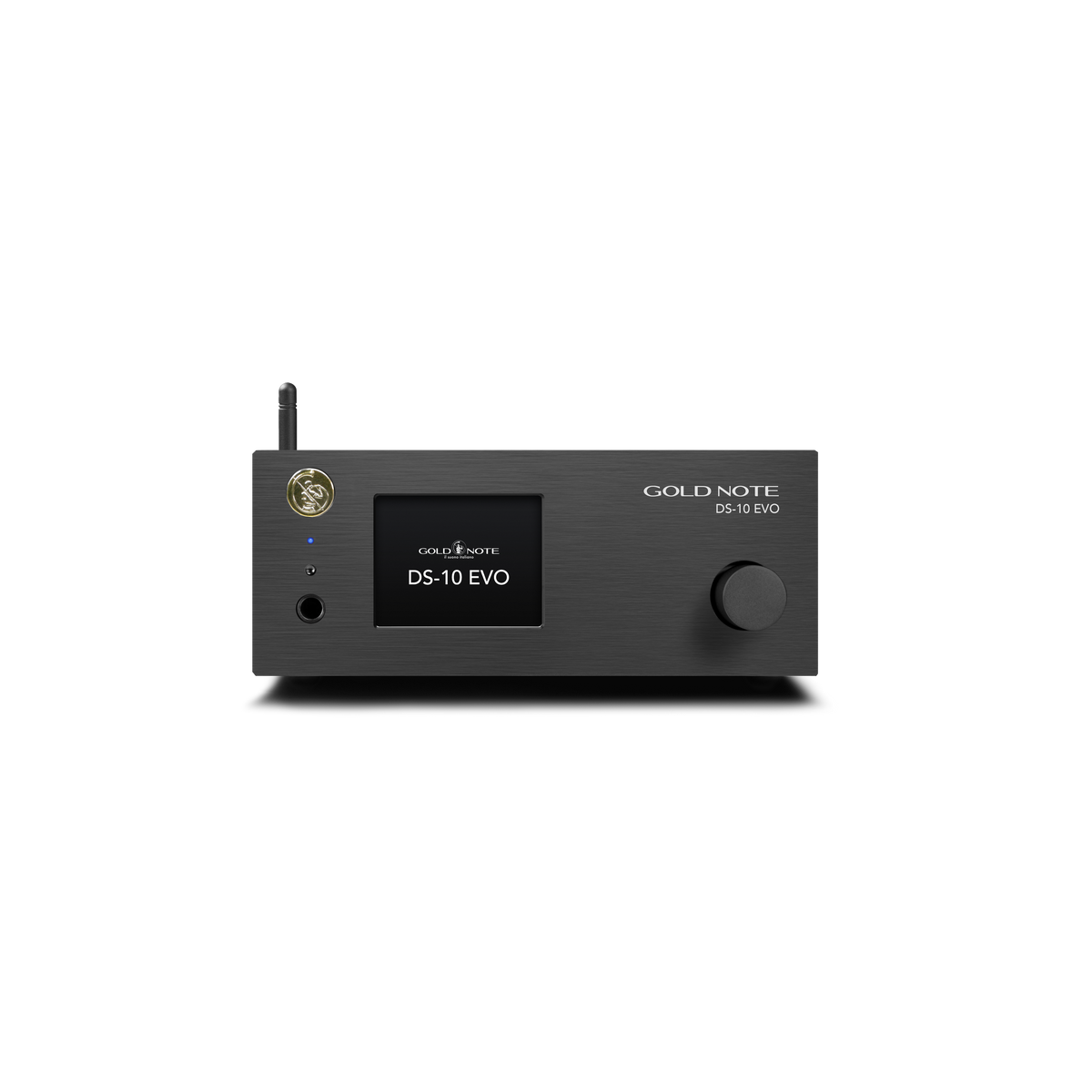

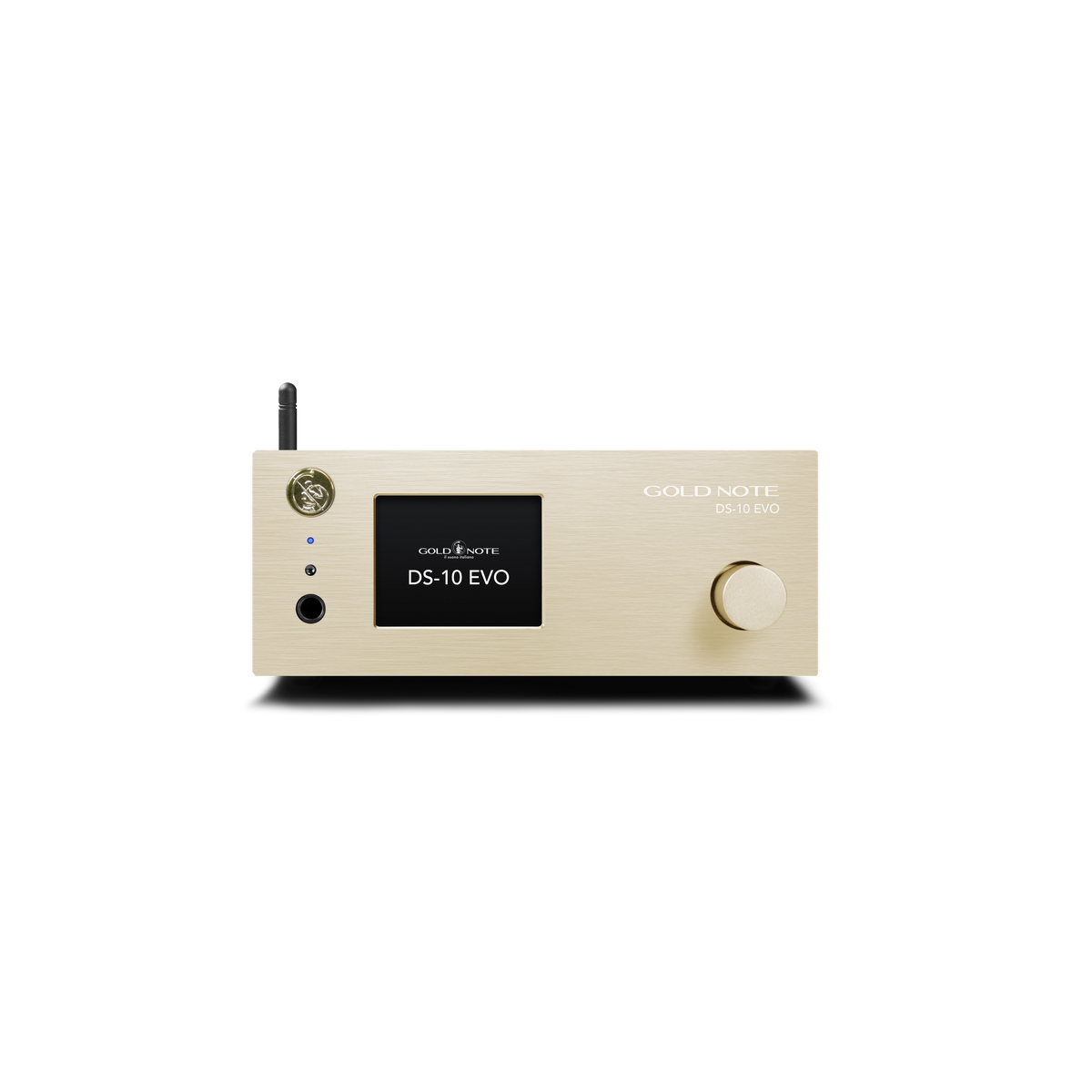

Brushed Aluminium available in Black, Gold and Silver
REMOTE CONTROL
Multifunctional IR remote control
APP
GN Control
CHAMELEON DAC
The 3 parameters of the Chameleon Function affect the sound independently, so you can change one at a time to fine-tune the DAC. The effects can also be combined for a total of 48 configurations, giving you virtually unlimited flexibility.
The parameter that affects the sound the most is the PCM EQ, which controls the DAC chipset. Here’s a summary of the settings:
1 (natural tone) = super slow roll-off
2 (acoustic tone) = short delay with slow roll-off, with a group delay of 5.3/Fs
3 (traditional tone) = slow roll-off
4 (harmonic sound) = short delay with low dispersion
5 (acoustic sound) = short delay with sharp roll-off, with a group delay of 6.25/Fs
6 (traditional sound) = sharp roll-off
We suggest starting the fine-tuning with the PCM EQ, then move to adjust the DEE, and lastly the DSD filter.
These two parameters are extremely delicate so the way they affect the sound is finer and less evident but can make quite a difference in some systems.
UPGRADE PATH
PSU-10 EVO external inductive power supply
