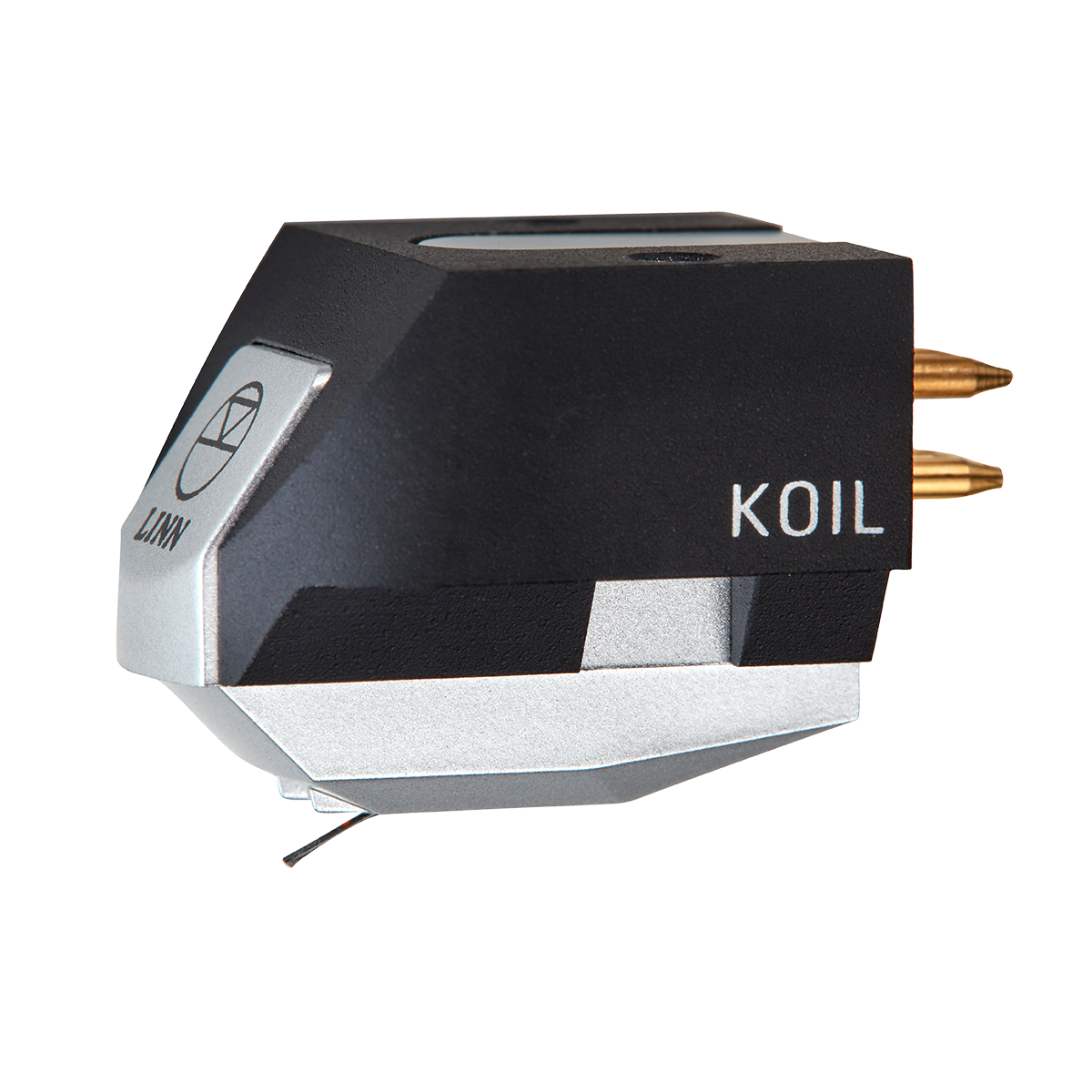

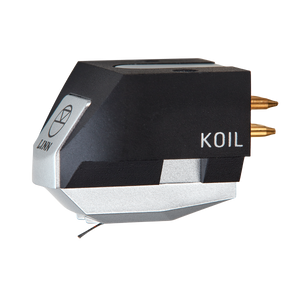

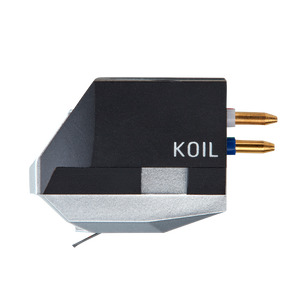

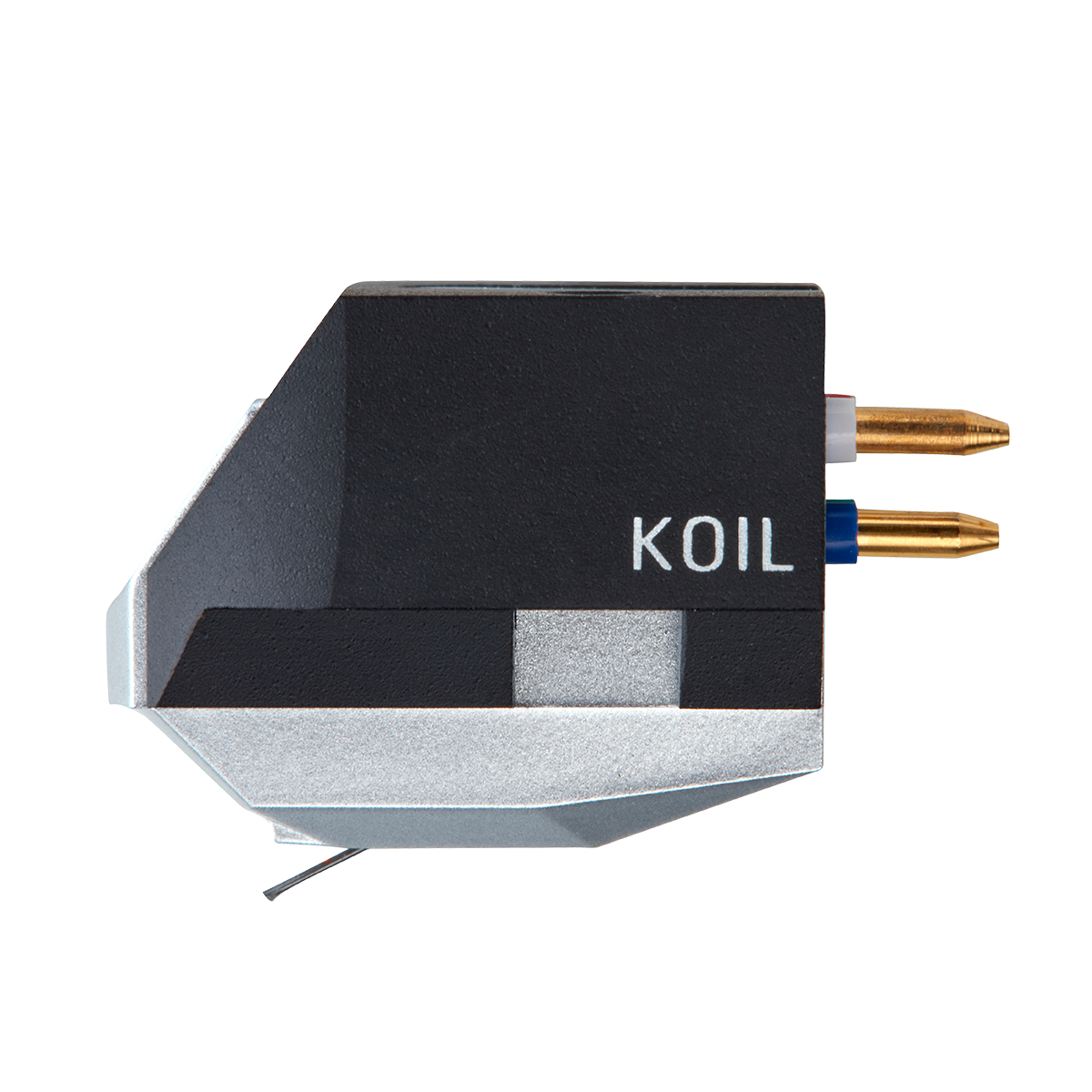

Linn - Koil MC - Phono Cartridge
Linn - Koil MC - Phono Cartridge
Linn - Koil MC - Phono Cartridge
Sold Out

    Linn - Koil MC - Phono Cartridge

    $1,600.00
    A formidable, entry-level moving coil (MC) cartridge, Koil is a superb first step onto the ladder of premium moving coil cartridges. This Majik-level cartridge provides a step up in performance from Adikt; and is available...
    DESCRIPTION

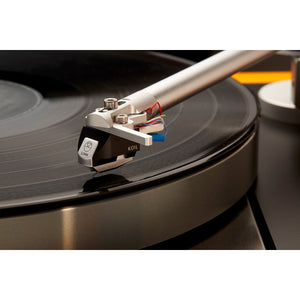

    A formidable, entry-level moving coil (MC) cartridge, Koil is a superb first step onto the ladder of premium moving coil cartridges. This Majik-level cartridge provides a step up in performance from Adikt; and is available either as an upgrade, or fitted as standard to a new Majik LP12 MC.

    Choose Koil if you intend to use your Majik LP12 with a moving coil phono preamplifier. Upgrade from Adikt to progress your journey along the path to vinyl playback perfection.

    Key features

    • Moving coil (MC)
    • Nude Microlinear Stylus
    • Low mass boron cantilever

    Technical Specifications

    Entry-level moving coil cartridge

    Stylus Type Nude Microlinear
    Cantilever Boron
    Coil Wire Copper
    Pin Connection Type 1.2mm gold pin
    Mounting Points 2
    Output Voltage 0.4mV @ 5cm/s
    Channel Balance at 1 kHz 1.0dB
    Channel Separation at 1kHz 27dB
    Load Resistance 100 Ω
    Load Capacitance 100 nF
    Tracking Force 1.8-2.2 g (2.0 g nom)
    Cartridge Mass 7.6 g
