Easy to integrate into any lifestyle and perfectly appropriate for any application, KIN Sub 8 will accentuate the bass excitement of every music, movie, or gaming experience.
Available in Satin Black or Satin White. Feet and Grills included.
285mm x 265mm x D 292mm. Weight: 7.5 kg each.
Mark Twain famously said, “It’s not the size of the dog in the fight, it’s the size of fight in the dog.” Totem concurs, and nothing exemplifies the quote more than the marvelously compact and enormously powerful KIN SUB 8.
Sub 8's wonderfully contradictory characteristics are enabled by innovative technology and ingenious engineering. The 8” Reinforced Fiberglass Woofer and oversized, vented magnetic structure initiate profound bass impact. Powered to thunderous perfection by our dynamic 200W digital amplifier, KIN Sub 8 strikes the perfect balance of musicality and brute force.
Design: Powered Subwoofer
Enclosure: Slot ported
Amplifier: Class D 200 watts
Woofer: 8” Reinforced Fiberglass cone with Butyl rubber surround.
Voice coil: Enamel resin coated copper wire wound on a vented aluminum former
Frequency response: 29 Hz – 200 Hz
Crossover: Variable from 40Hz to 120Hz, 24dB/Octave
Phase: Variable from 0 to 180 degrees
Volume: Variable
Inputs: Stereo RCA/LFE
Power modes: Auto/On
Dimensions (HxWxD) : 285mm x 265mm x D 292mm
Weight: 7.5 kg
Bespoke Acoustic Engineering
Every single driver is completely unique to Totem and proprietary in design, engineered by Totem and then manufactured to the strictest standards to meet our parameters by the finest raw driver suppliers in the world. In some cases, where the technology is beyond the capabilities of suppliers or is wished to kept secret, Totem can and will build our own drivers. Every driver exhibits phase linearity, speed, emotion, off axis natural presentation, and spatial articulation.
Specifically conceived for one job
Each Totem subwoofer amplifier is designed with a specific set of parameters for a single goal; to power the particular drivers within its given enclosure, all designed in tandem. Simply put, each Totem subwoofer amplifier is unique. As unique as every Totem driver. They are designed in tandem so they work harmoniously and with ultimate efficiency, attaining the maximum from each other. Throughout the design process the amplifier is tweaked and modified until it perfectly combines power and musicality.
Slot Port
The slot port is methodically designed to tune the enclosure to the lowest possible frequency, while maintaining impact, musicality, and depth. It tunes the cabinet in the same manner a port tunes a speaker, and allows the subwoofer to produce size defying bass.
Eliminate unwanted vibrations
These feet help acoustically isolate the cabinet from the floor, preventing resonances, vibrations, and other unwanted effects that can have negative effects on the performance. It is strongly recommended that they be used so the subwoofer can perform at its full potential.
The 8” driver is composed of coated, high tensile spun fiberglass strands bonded to a cellulose core. A vented magnetic structure utilizing an oversized ferrite magnet assembly provides prodigious power yet stays cool to consistently maintain optimum
performance.
The Butyl rubber surround allows remarkable excursion and bass presence. The aluminum voice coil is wound with enamel resin coated copper wire for the sensational magnetic properties that result in quick, accurate bass.
A 200 watt digital amplifier designed in tandem ensures the KIN Sub 8 is powered to perfection. Bass is thunderous and controlled, equally musical and explosive.

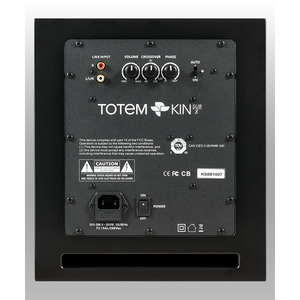

Equipped with Volume, Phase, and Frequency controls to blend with any system and room and be tailored for any taste. LFE and stereo RCA input options allow simple connection to most amplifiers.
