Vertere - Tempo Precision Motor Drive
Vertere - Tempo Precision Motor Drive
Vertere - Tempo Precision Motor Drive
Vertere - Tempo Precision Motor Drive
Sold Out

    Vertere - Tempo Precision Motor Drive

    $6,995.00
    The music we hear when playing vinyl records, in reality, comes from the motor! The motor is the only source of energy in the system.  It is this energy that drives the record past the stylus...
    DESCRIPTION

    The music we hear when playing vinyl records, in reality, comes from the motor! The motor is the only source of energy in the system.  It is this energy that drives the record past the stylus thus making the music we hear.

    Any amount of noise or fluctuation in the drive system will adversely impact on the music.  Detail, dynamics, timbre, timing and musicality are just some of the qualities that will suffer as a result.

    The Tempo takes control of the record player motor and provides it with smoother drive with lower noise and lower distortion. Its internal circuit as with the reference motor drive is uniquely microprocessor based providing a pure sine wave in the digital domain and then converted to analogue via an on-board DAC. Two waveforms are derived, a cosine and a sine, which are then amplified using two bridged amplifiers to power the motor.

    The Tempo enhances the musical performance and makes the experience of listening to vinyl on the RG-1 or the SG-1 closer to the original master.

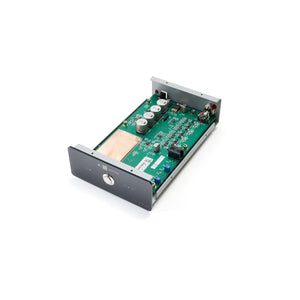

    • Exceptional attention to detail from gold plated PCB, four fully regulated voltage rails powering different sections of the circuit to carefully selected components ensure in-control and ‘clean final delivery of power to the motor.
    • The entire digital, microprocessor and DAC, circuitry is first shielded by copper foil and then the whole PCB is secondary shielded using a stainless-steel shield plate.
    • High quality mode and speed selector switch allows the unit to be programmed to provide three modes for the white power indicator LED and facilitate easy switching between 33 & 45 rpm.
    • Motor output is via a high-quality gold plated 6-way locking connector which in turn connects the Tempo to the record player via a dedicated motor link internally utilising two Pulse-R drive cables and a D-Fi LED power cable.

    Technical Specifications

    Technology
    Microprocessor Controlled & Programmable
    Input Power
    Dedicated DC Power Supply
    Output Drive
    Bi-phase Bridged Amplifier
    Output
    Precision Sine & Cosine Waves
    Output Adjustment
    33 | 45 Phase Angle & Level
    Output Voltage
    17.5 Vac rms (Two Phases)
    LED Illumination Output
    12Vdc (Fixed)
    THD+N
    <0.1%
    Circuit Shielding
    Triple Shielded
    Motor Link Cable
    Dedicated Two Phase + LED Power
    Power Consumption
    <30 Watts Max.

    Dimensions (D x W x H mm)
    220 x 128 x 58 (including Selector & Feet )
    Weight
    1.3kg
